Control Valve Body: Removal

NOTE: The control valve body is a non-disassembly part.

Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Remove the oil pan and oil strainer. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Oil Pan>REMOVAL .
Disconnect the connector.

Courtesy of SUBARU OF AMERICA, INC.

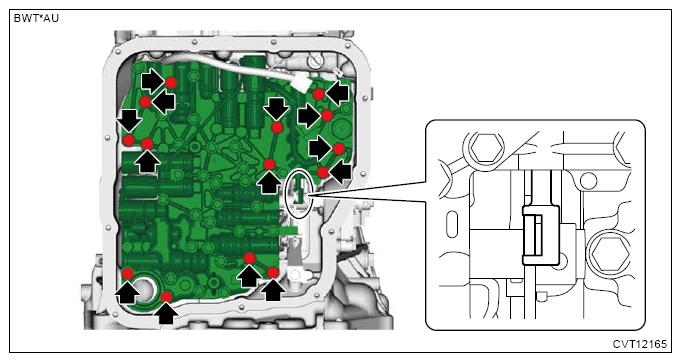

Remove the control valve body.
CAUTION: Be careful not to let the manual valve drop off.

Courtesy of SUBARU OF AMERICA, INC.

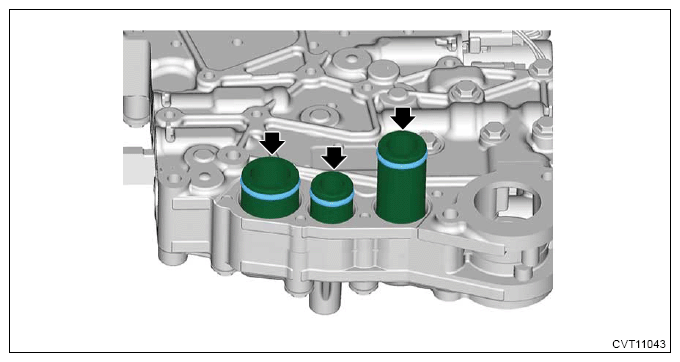

Remove the pressure pipe No. 1, pressure pipe No. 2 and pressure pipe No. 3.
NOTE: It may remain in the transmission case side.

Courtesy of SUBARU OF AMERICA, INC.

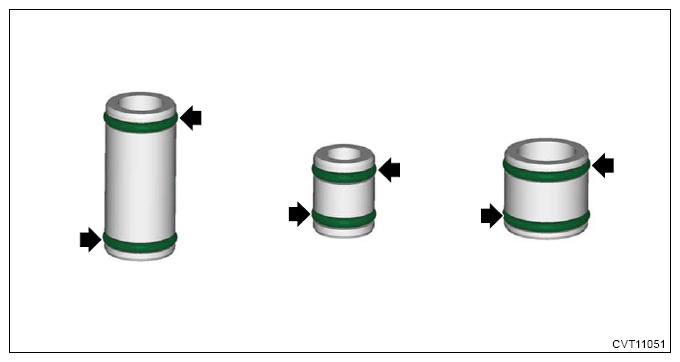

Remove the O-rings from the pressure pipe No. 1, pressure pipe No. 2 and pressure pipe No. 3.

Courtesy of SUBARU OF AMERICA, INC.
