Converter Case Cover: Disassembly

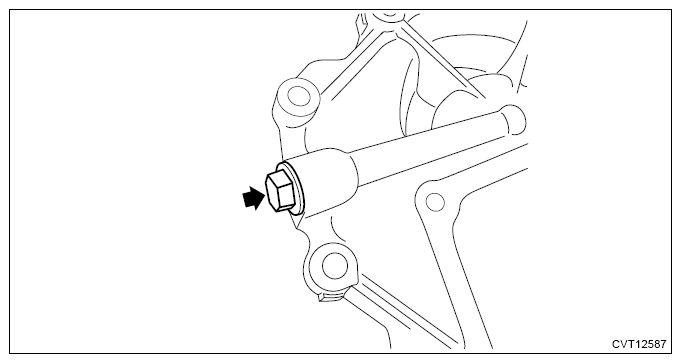

  1. Remove the plug and O-ring.
    G13864171Courtesy of SUBARU OF AMERICA, INC.
