Converter Case: Assembly

Install the stud bolt using TORX® socket E10.
NOTE: After installing, check that the protruding portion (a) is within the standard.

Tightening torque:

18 N.m (2.5 kgf-m, 18.4 ft-lb)

Specification:

26.5 - 30.2 mm (1.04 - 1.19 in)

Courtesy of SUBARU OF AMERICA, INC.
Install the plugs with new O-rings.
NOTE: Apply CVTF to the O-rings.

Tightening torque:

T1: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

T2: 50 N.m (5.1 kgf-m, 36.9 ft-lb)
Attach the drain plug (A) using a new gasket, using TORX® bit T70.
Tightening torque:

T3: 70 N.m (7.1 kgf-m, 51.6 ft-lb)
Temporarily install the overflow plug (B).
NOTE: Replace the gasket of overflow plug with a new part after adjusting the differential gear oil level.

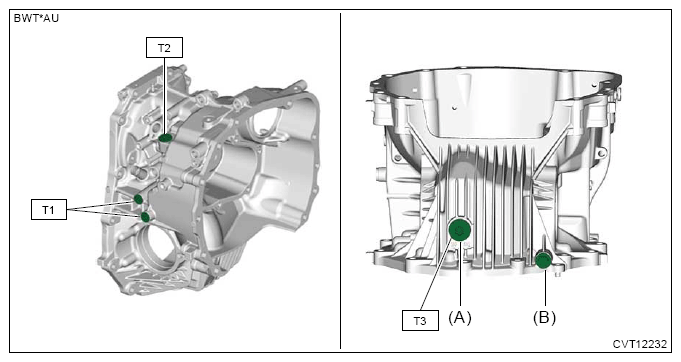

Fig 1: Differential Gear Bolts Components (With Torque Specification)
