Differential Gear Oil: Replacement

CAUTION: Vehicle components are extremely hot immediately after driving. Be wary of receiving burns from heated parts.

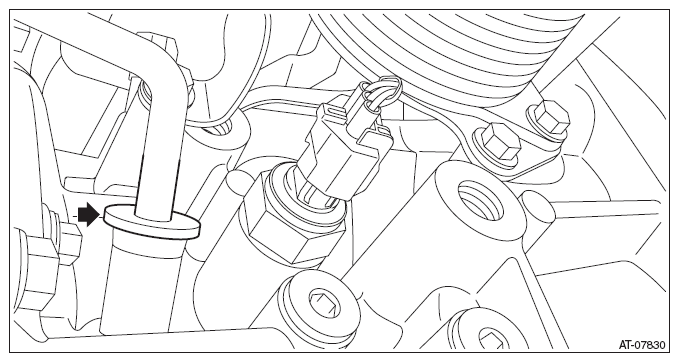

Remove the oil charge pipe cap.

Courtesy of SUBARU OF AMERICA, INC.

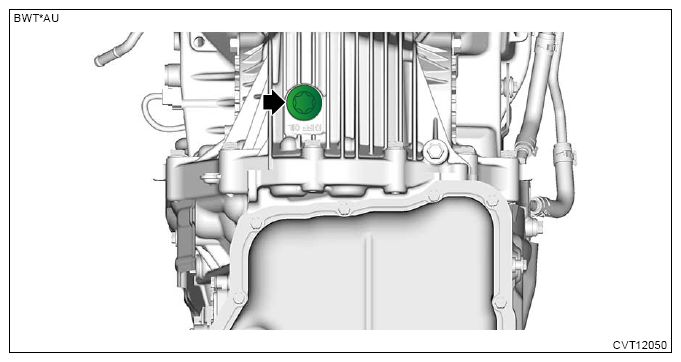

Drain the differential gear oil by removing drain plug using TORX® bit T70.

Courtesy of SUBARU OF AMERICA, INC.
Remove the iron powder, etc. from the drain plug.
Attach the drain plug using a new gasket, using TORX® bit T70.
Tightening torque:

70 N.m (7.1 kgf-m, 51.6 ft-lb)
Fill with differential gear oil through the oil charge pipe.
Differential gear oil:

Ref. to RECOMMENDED MATERIALS .

Differential gear oil capacity:

Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>General Description>SPECIFICATION .
Check the differential gear oil level. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Differential Gear Oil>INSPECTION .
