Drive Pinion: Disassembly

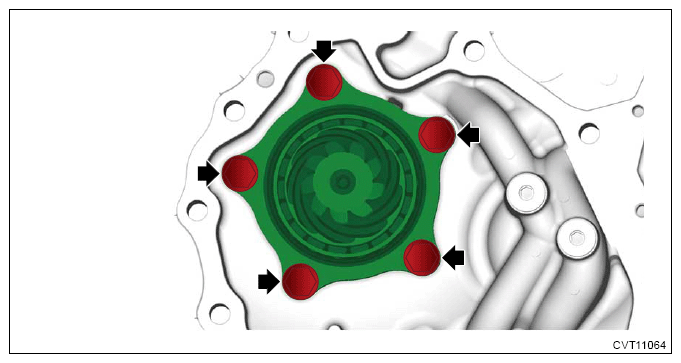

Remove the drive pinion.

Courtesy of SUBARU OF AMERICA, INC.
Flatten the tab of the lock nut.
Using ST1 and ST2, fix at the spline portion of drive pinion to remove the lock nut.
Preparation tool:

ST1: ADAPTER WRENCH (18621AA000)

ST2: HOLDER (18667AA010)

Courtesy of SUBARU OF AMERICA, INC.
Remove the drive pinion collar and O-ring from the drive pinion.

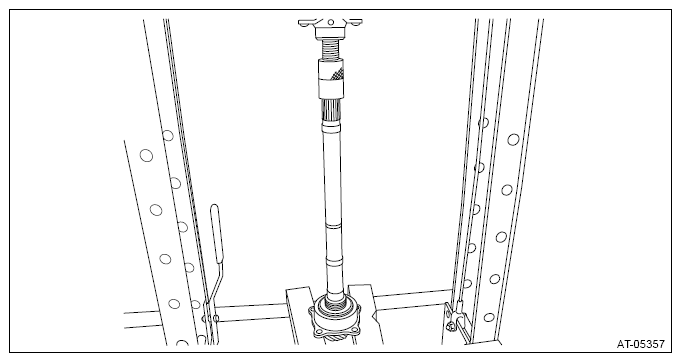

Using a press, remove the taper roller bearing inner race (rear side) and taper roller bearing outer race from the drive pinion.

Courtesy of SUBARU OF AMERICA, INC.

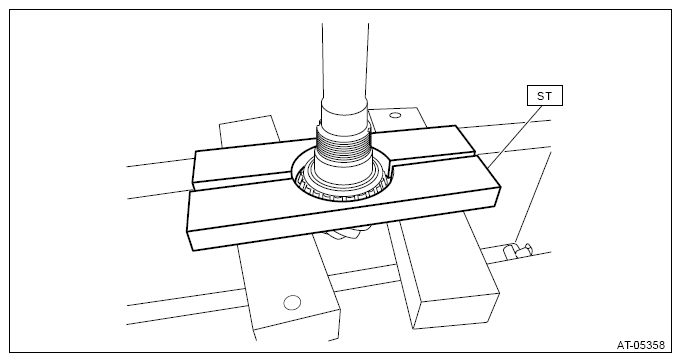

Using the ST and a press, remove the taper roller bearing inner race (front side) from the drive pinion.
Preparation tool:

ST: REMOVER (498077000)

Courtesy of SUBARU OF AMERICA, INC.
Remove two oil seals using a flat tip screwdriver wrapped with cloth, etc.
CAUTION: Do not damage the fitting surface of taper roller bearing.

Courtesy of SUBARU OF AMERICA, INC.

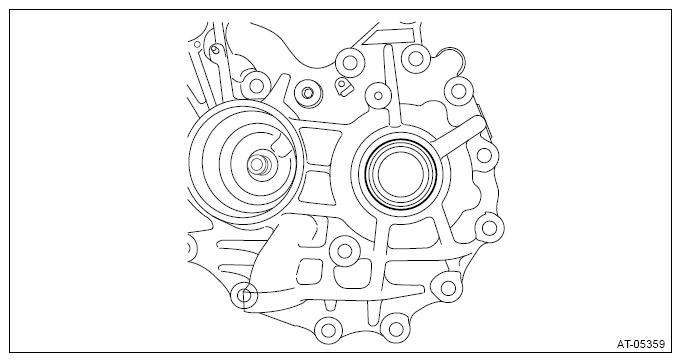

Remove the plug from drive pinion retainer.
