Extension Case: Removal

  1. Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Transmission Assembly>REMOVAL .
  2. Remove the front wheel speed sensor. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Front Wheel Speed Sensor>REMOVAL .

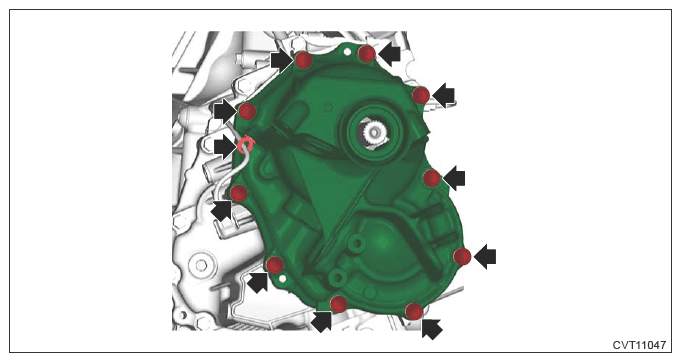

  3. Remove the harness clip, and remove the extension case.
    G13200121Courtesy of SUBARU OF AMERICA, INC.
