Forward Clutch: Installation

  1. Select a washer. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Forward Clutch>ADJUSTMENT .
  2. Install the selected washer.
  3. Install the forward clutch.

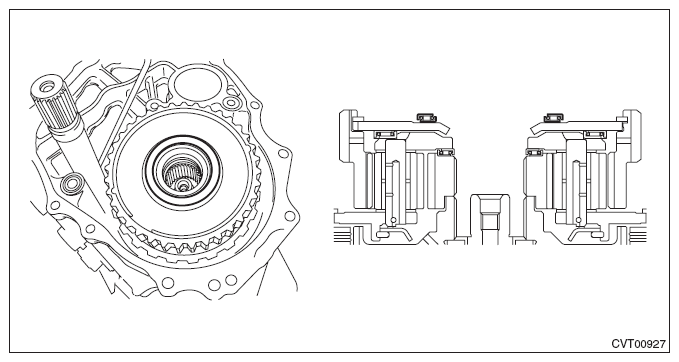

  4. Install the thrust bearing.
    NOTE: Install the thrust bearing in the correct direction.
    G10276212Courtesy of SUBARU OF AMERICA, INC.
  5. Install the intermediate case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Intermediate Case>INSTALLATION .
  6. Install the transfer reduction driven gear. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Transfer Reduction Driven Gear>INSTALLATION .
  7. Install the transfer clutch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Transfer Clutch>INSTALLATION .
  8. Install the rear drive shaft. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Rear Drive Shaft>INSTALLATION .
  9. Install the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Extension Case>INSTALLATION .
  10. Install the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Transmission Assembly>INSTALLATION .
