Front Reduction Drive Gear: Assembly

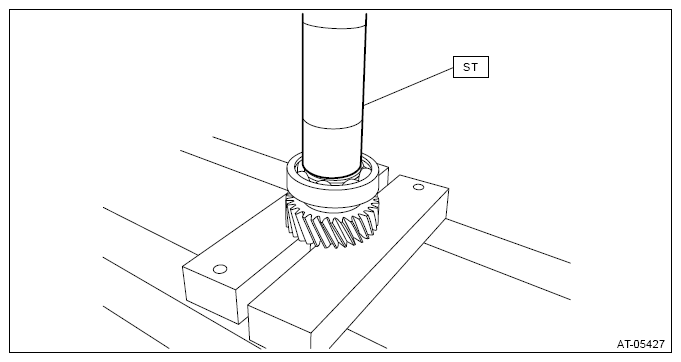

Using the ST, install a new ball bearing to the front reduction drive gear.
CAUTION:
- Be sure to apply CVTF to press-fitting surface of ball bearing.
- Use SUBARU genuine CVTF.
Preparation tool:

ST: INSTALLER (18651AA000)

Courtesy of SUBARU OF AMERICA, INC.

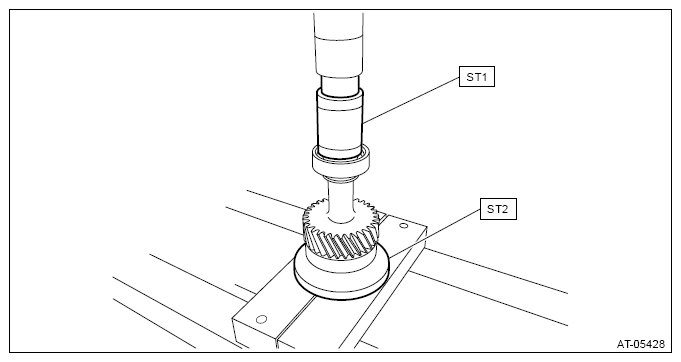

Using ST1 and ST2, install a new ball bearing to the front reduction drive gear.
Preparation tool:

ST1: INSTALLER (499757002)

ST2: INSTALLER (398177700)

Courtesy of SUBARU OF AMERICA, INC.

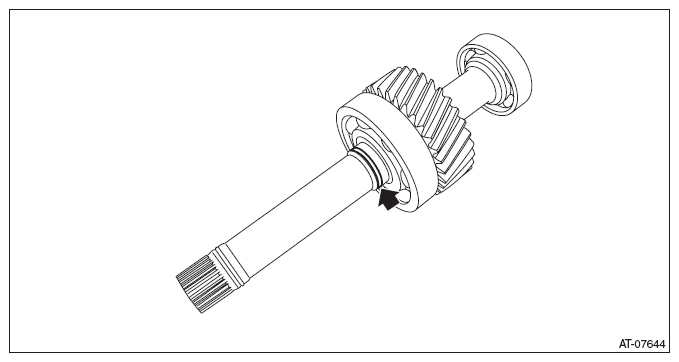

Install a new seal ring.
CAUTION:
- Before installing seal rings, apply sufficient amount of CVTF to avoid damage and deformation.
- Use SUBARU genuine CVTF.
- When installing the seal rings, do not expand the seal rings too much.
NOTE: Install the O-ring when installing the torque converter.

Courtesy of SUBARU OF AMERICA, INC.
