Front Reduction Drive Gear: Removal

  1. Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Transmission Assembly>REMOVAL .
  2. Remove the air breather hose. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Air Breather Hose>REMOVAL .
  3. Remove the oil pan and control valve body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Control Valve Body>REMOVAL .
  4. Remove the transmission harness. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Transmission Harness>REMOVAL .
  5. Remove the primary speed sensor. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Primary Speed Sensor>REMOVAL .
  6. Remove the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Extension Case>REMOVAL .
  7. Remove the rear drive shaft. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Rear Drive Shaft>REMOVAL .
  8. Remove the transfer clutch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Transfer Clutch>REMOVAL .
  9. Remove the transfer reduction driven gear. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Transfer Reduction Driven Gear>REMOVAL .
  10. Remove the intermediate case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Intermediate Case>REMOVAL .
  11. Remove the forward clutch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Forward Clutch>REMOVAL .
  12. Remove the transmission case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Transmission Case>REMOVAL .
  13. Remove the primary pulley, secondary pulley and variator chain. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Primary Pulley and Secondary Pulley>REMOVAL .
  14. Remove the drive pinion. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Drive Pinion>REMOVAL .
  15. Remove the oil pump chain cover and the oil pump chain. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Oil Pump Chain>REMOVAL .
  16. Remove the converter case cover. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Converter Case Cover>REMOVAL .

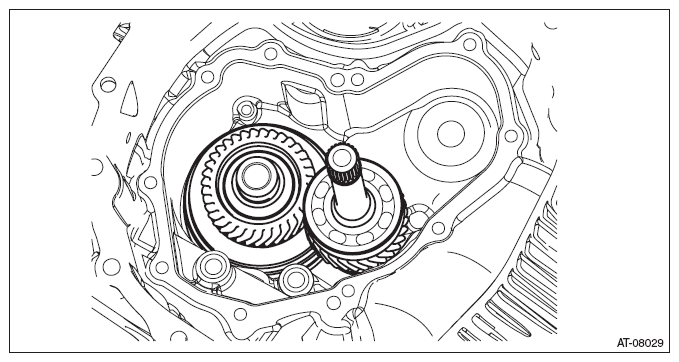

  17. Remove the front reduction drive gear and front reduction driven gear as a single unit.
    NOTE: Remove the front reduction driven shaft while holding it.
    G09482339Courtesy of SUBARU OF AMERICA, INC.
  18. Remove the front reduction driven gear shim (rear side) from the converter case.
  19. Remove the seal rings.
    G13864166Courtesy of SUBARU OF AMERICA, INC.
