Front Reduction Driven Gear: Disassembly

  1. Remove the front reduction driven shaft from the front reduction driven gear.

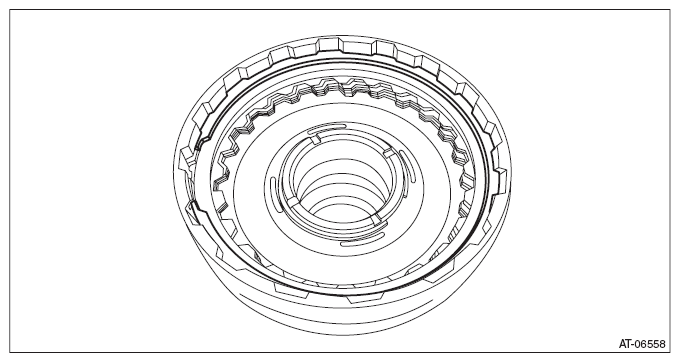

  2. Remove the snap ring.
    G09482352Courtesy of SUBARU OF AMERICA, INC.

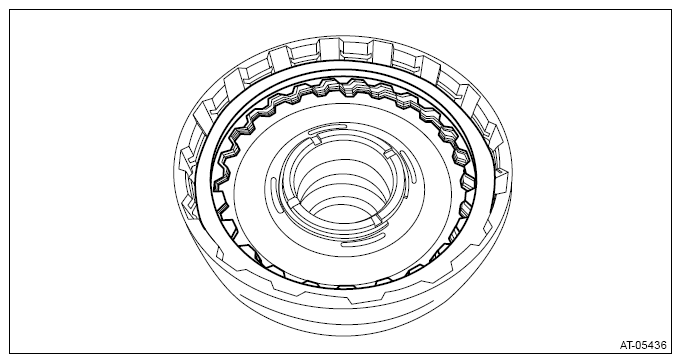

  3. Remove the retaining plate, drive plate, driven plate and dish plate.
    G13200368Courtesy of SUBARU OF AMERICA, INC.

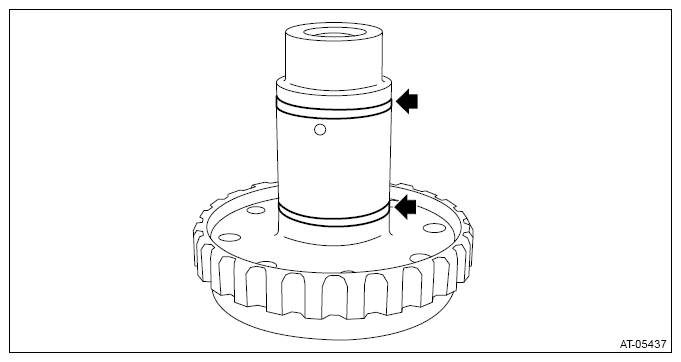

  4. Remove the seal ring from the front reduction driven shaft.
    G13200369Courtesy of SUBARU OF AMERICA, INC.

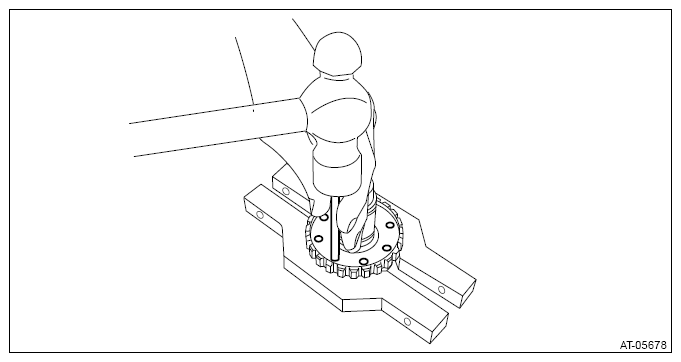

  5. Remove the ball bearing, while tapping the entire circumference around the ball bearing outer race a little at a time through the front reduction driven shaft hole using the round bar with diameter of 7 mm (0.28 in).
    G13200370Courtesy of SUBARU OF AMERICA, INC.
