Front Differential Gear

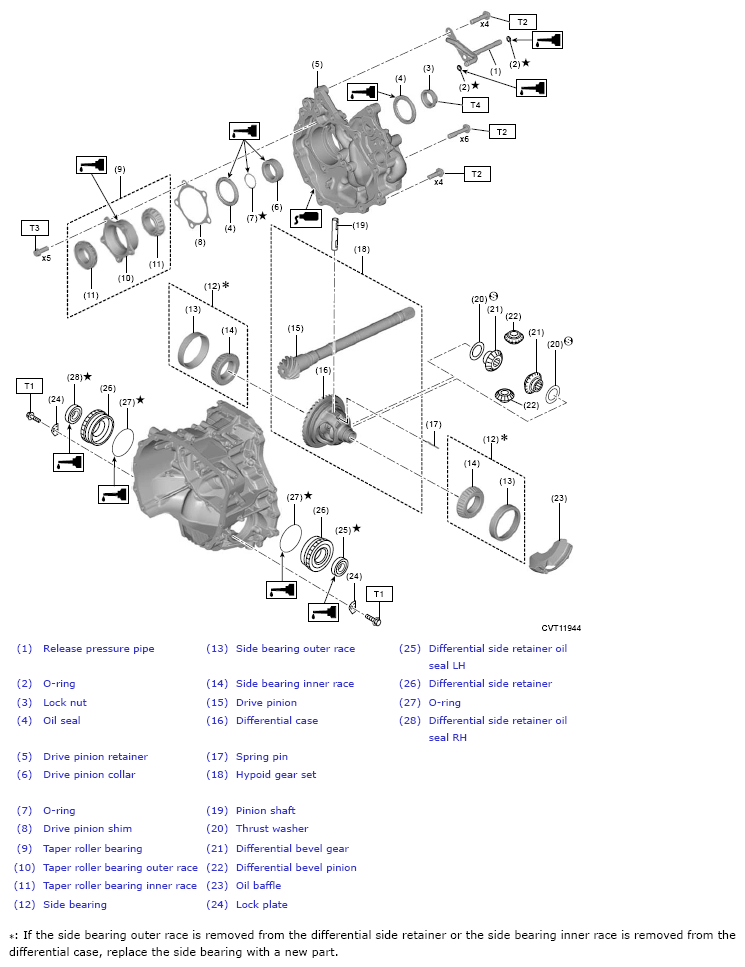

Fig 1: Exploded View Of Front Differential Gear Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 25 (2.5, 18.4)

T2: 43 (4.4, 31.7)

T3: 70 (7.1, 51.6)

T4: 116 (11.8, 85.6)

*: If the side bearing outer race is removed from the differential side retainer or the side bearing inner race is removed from the differential case, replace the side bearing with a new part.
