Torque Converter & Converter Case

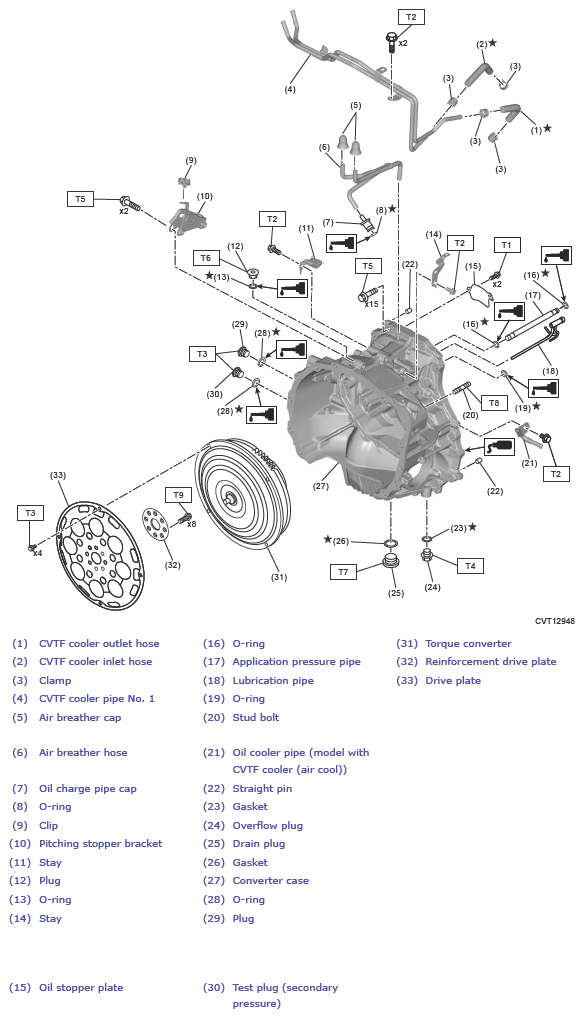

Fig 1: Exploded View Of Torque Converter And Converter Case Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 9 (0.9, 6.6)

T2: 16 (1.6, 11.8)

T3: 25 (2.5, 18.4)

T4: 35 (3.6, 25.8)

T5: 41 (4.2, 30.2)

T6: 50 (5.1, 36.9)

T7: 70 (7.1, 51.6)

T8:  Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Converter Case>ASSEMBLY .

T9:  Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Drive Plate>INSTALLATION .
