Transmission Case

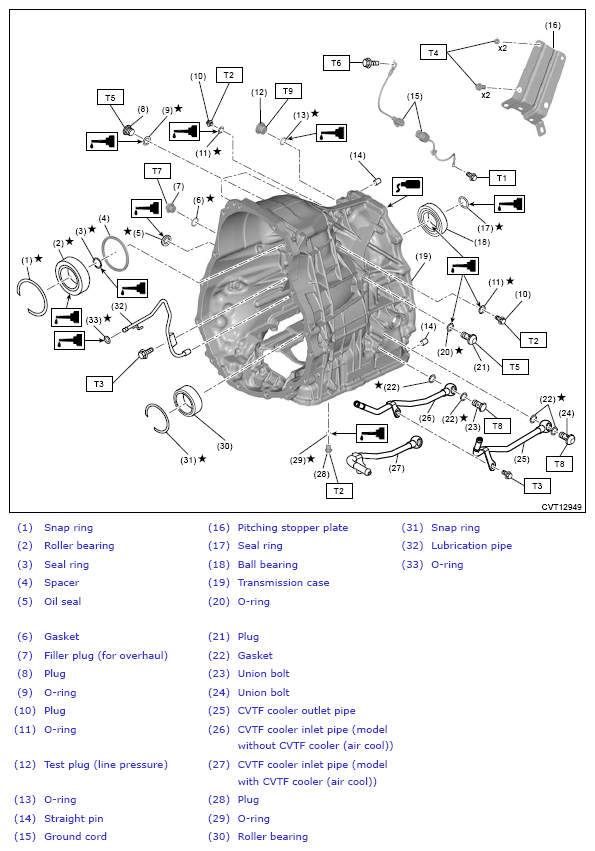

Fig 1: Exploded View Of Transmission Case Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7 (0.7, 5.2)

T2: 13 (1.3, 9.6)

T3: 16 (1.6, 11.8)

T4: 18 (1.8, 13.3)

T5: 25 (2.5, 18.4)

T6: 32.3 (3.3, 23.8)

T7: 35 (3.6, 25.8)

T8: 40 (4.1, 29.5)

T9: 50 (5.1, 36.9)
