Transmission Harness And Sensor

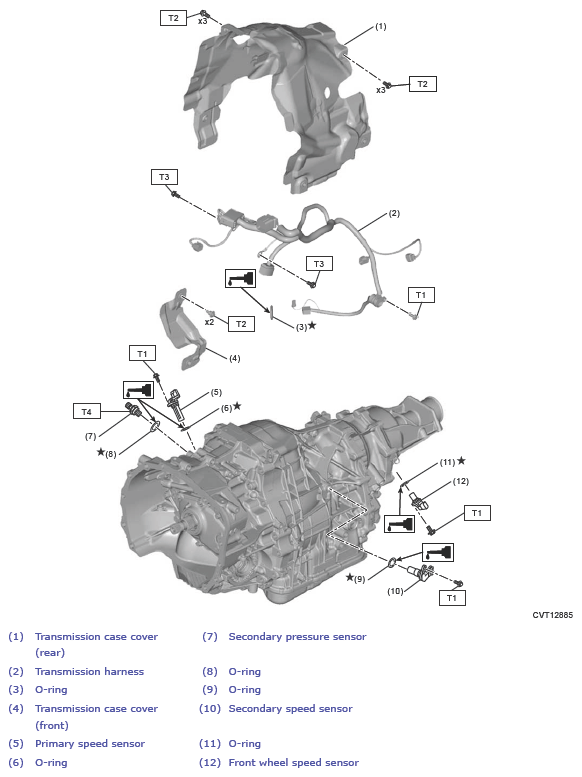

Fig 1: Exploded View Of Transmission Harness And Sensor Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5 (0.5, 3.7)

T2: 8 (0.8, 5.9)

T3: 13 (1.3, 9.6)

T4: 39 (4.0, 28.8)
