Intermediate Case: Disassembly

  1. Remove the parking support.

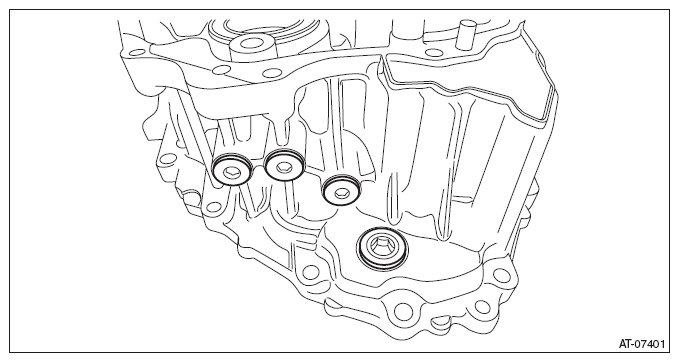

  2. Remove the filler plug and the plug.
    G09482115Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the reverse brake. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Intermediate Case>DISASSEMBLY .
