Drive Sprocket

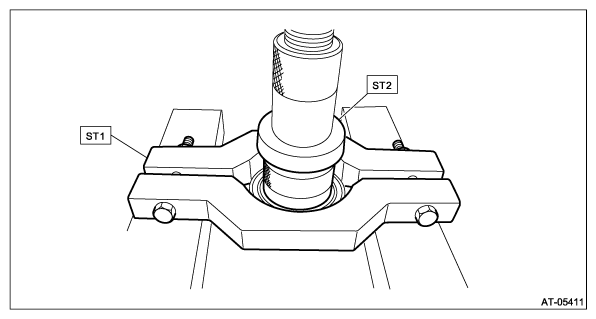

  1. Remove the ball bearing using the ST1 and ST2.

    Preparation tool:

    ST1: REMOVER (498077600)

    ST2: INSTALLER (399513600)

    G12476547Courtesy of SUBARU OF AMERICA, INC.
