Oil Pump Chain: Installation

Clean the mating surface of oil pump chain cover and converter case cover.
Press-fit a new oil seal using ST and a press.
NOTE: Apply CVTF to the press-fitting area.

Preparation tool:

ST: HOUSING BUSHING INSTALLER AND REMOVER (927720000)

Courtesy of SUBARU OF AMERICA, INC.

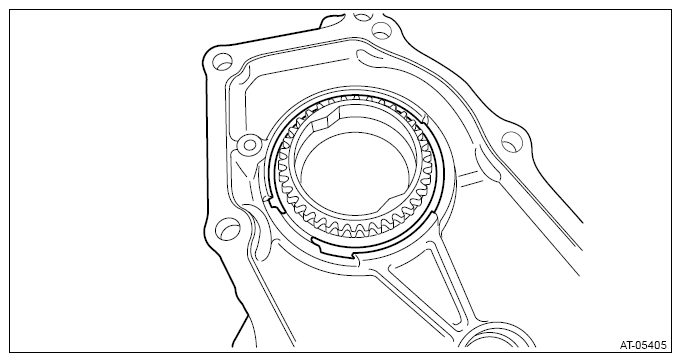

Set the drive sprocket and install the snap ring.

Courtesy of SUBARU OF AMERICA, INC.
Place the oil pump chain on drive sprocket.

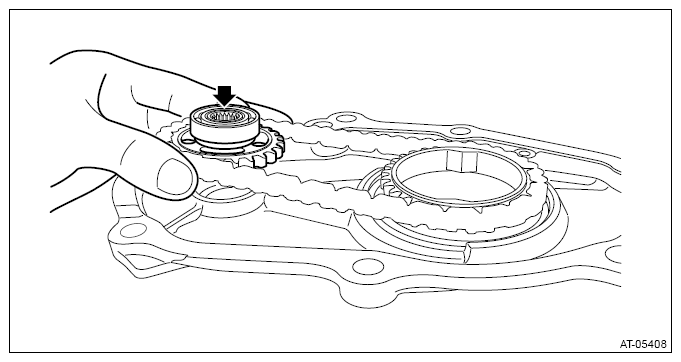

Place the oil pump chain on driven sprocket and install the driven sprocket to oil pump chain cover.

Courtesy of SUBARU OF AMERICA, INC.
Install a new seal ring.
CAUTION:
- Before installing seal rings, apply sufficient amount of CVTF to avoid damage and deformation.
- Use SUBARU genuine CVTF.

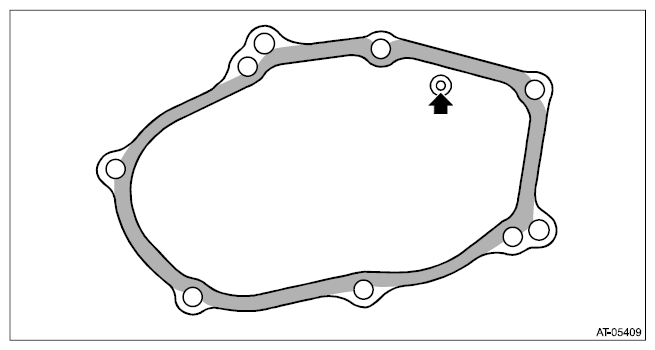

Apply liquid gasket seamlessly to the mating surface of oil pump chain cover, and temporarily install it.
CAUTION: Do not apply liquid gasket at the arrowed hole.

Liquid gasket:

THREE BOND 1215B or equivalent

Courtesy of SUBARU OF AMERICA, INC.

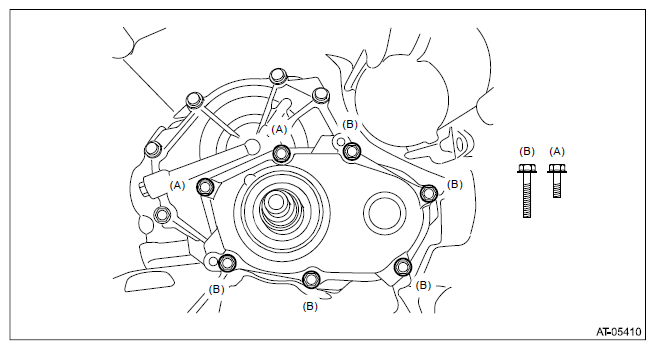

Tighten the oil pump chain cover mounting bolts.
NOTE: There are two types of bolt.

Tightening torque:

24 N.m (2.4 kgf-m, 17.7 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the torque converter. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Torque Converter>INSTALLATION .
Install the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Transmission Assembly>INSTALLATION .
