Oil Pump Chain: Removal

  1. Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Transmission Assembly>REMOVAL .
  2. Remove the torque converter. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Torque Converter>REMOVAL .
  3. Remove the oil pump chain cover.

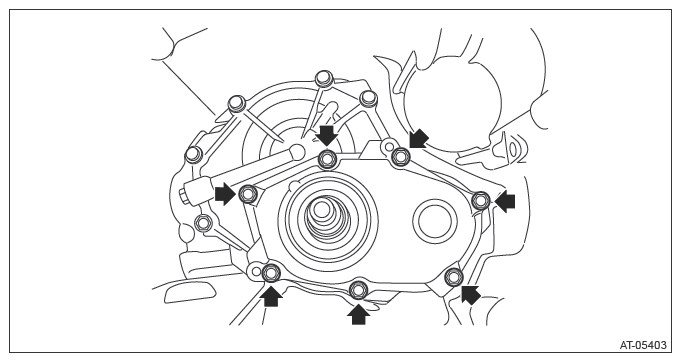

    G13200333Courtesy of SUBARU OF AMERICA, INC.

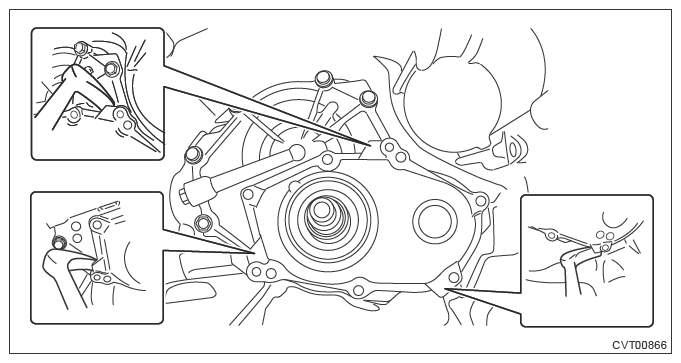

    G13200334Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the seal rings.

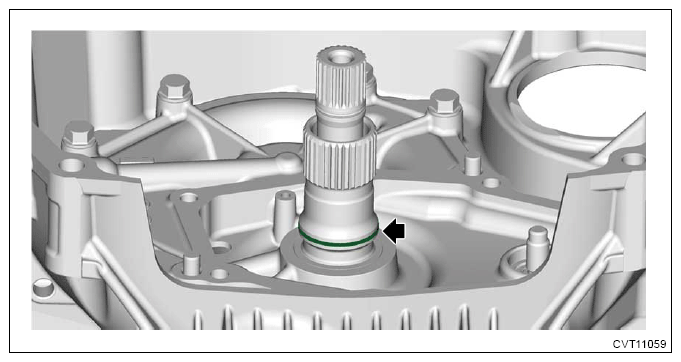

    G13200335Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the driven sprocket from oil pump chain cover to remove the oil pump chain.
    NOTE: The driven sprocket is a non-disassembly part.

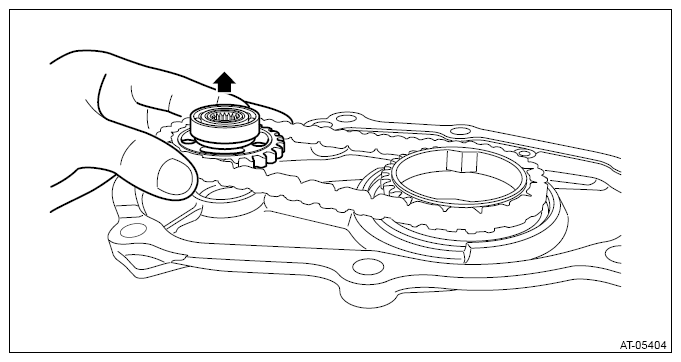

    G13200336Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the snap ring.
    G13200340Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the drive sprocket.

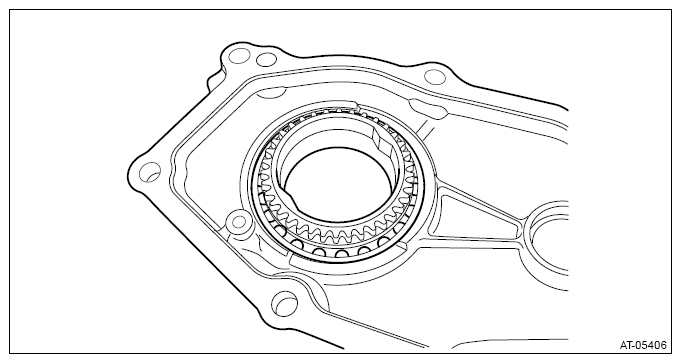

    G13200338Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the oil seal from the oil pump chain cover.
