Primary Speed Sensor: Removal
CAUTION:
If water or oil contacts the connector terminal of primary speed sensor, replace it with a new part.
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
.
- Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>Intercooler>REMOVAL
.

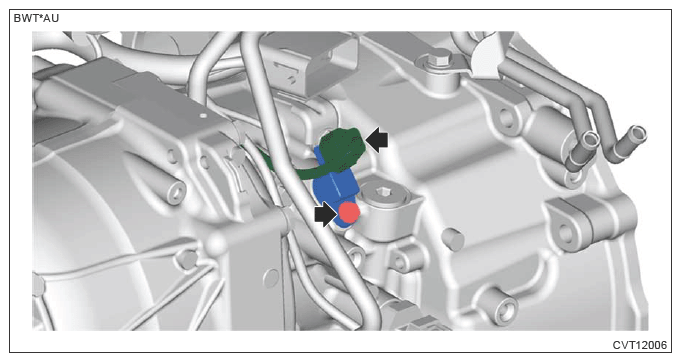

- Disconnect the connector, and remove the primary speed sensor.
 Courtesy of SUBARU OF AMERICA, INC.
|
