Rear Drive Shaft: Removal

  1. Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Transmission Assembly>REMOVAL .
  2. Remove the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Extension Case>REMOVAL .

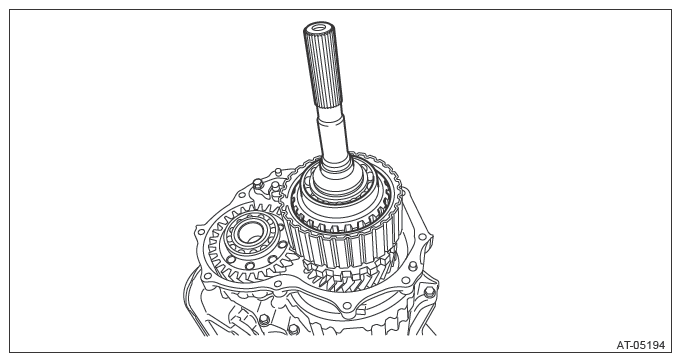

  3. Remove the rear drive shaft.
    G13200124Courtesy of SUBARU OF AMERICA, INC.
