Reduction Driven Gear: Assembly

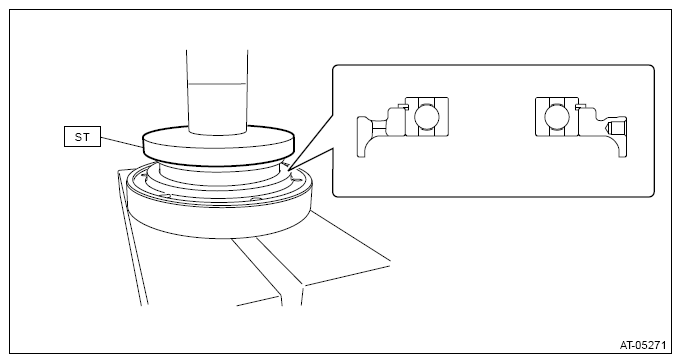

Using the ST and a press, install a new ball bearing to the bearing retainer.
CAUTION:
- Before press-fitting the ball bearing, apply CVTF to press-fitting surface.
- Use SUBARU genuine CVTF.
NOTE: Make sure to install the ball bearing in the right direction.

Preparation tool:

ST: INSTALLER (398177700)

Courtesy of SUBARU OF AMERICA, INC.
Install the snap ring.

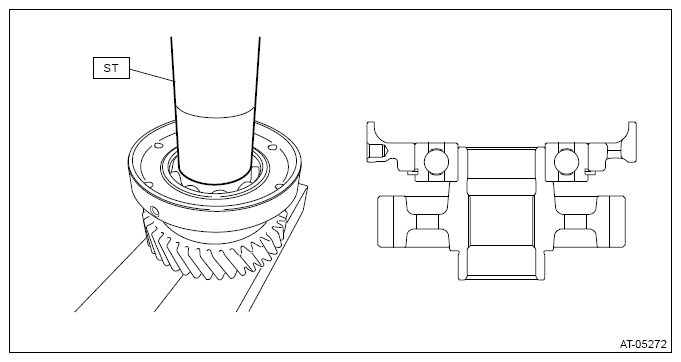

Install the reduction driven gear using the ST and a press.
Preparation tool:

ST: INSTALLER (499277200)

Courtesy of SUBARU OF AMERICA, INC.
