Reduction Driven Gear: Disassembly

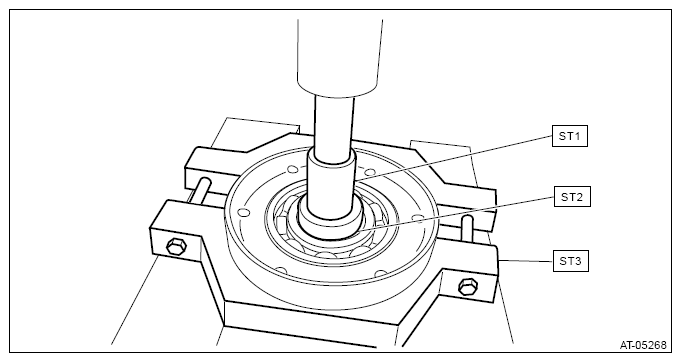

Remove the bearing retainer using ST1, ST2, ST3 and a press.
Preparation tool:

ST1: REMOVER (899864100)

ST2: SEAT (398497701)

ST3: BEARING REMOVER (18767AA000)

Courtesy of SUBARU OF AMERICA, INC.

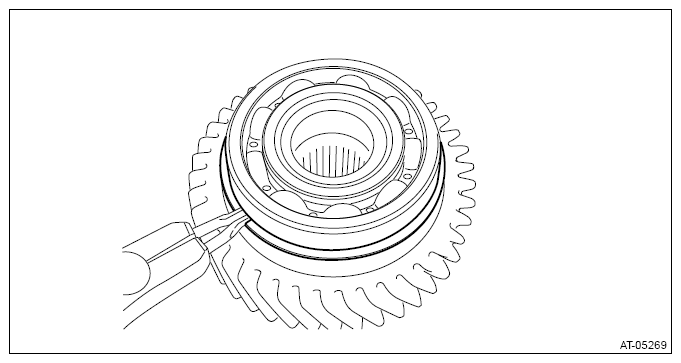

Remove the snap ring.

Courtesy of SUBARU OF AMERICA, INC.

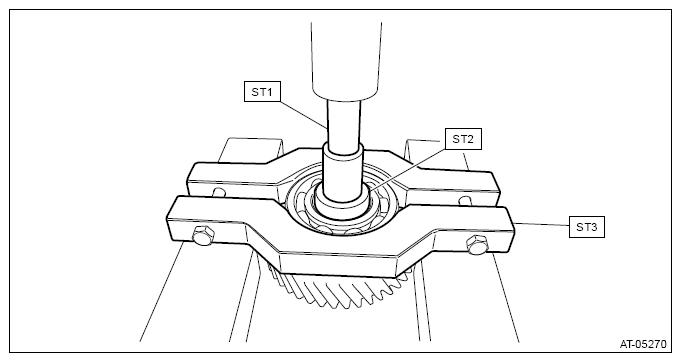

Remove the ball bearing using ST1, ST2, ST3 and a press.
Preparation tool:

ST1: REMOVER (899864100)

ST2: SEAT (398497701)

ST3: REMOVER (498077600)

Courtesy of SUBARU OF AMERICA, INC.
