Reverse Brake: Disassembly

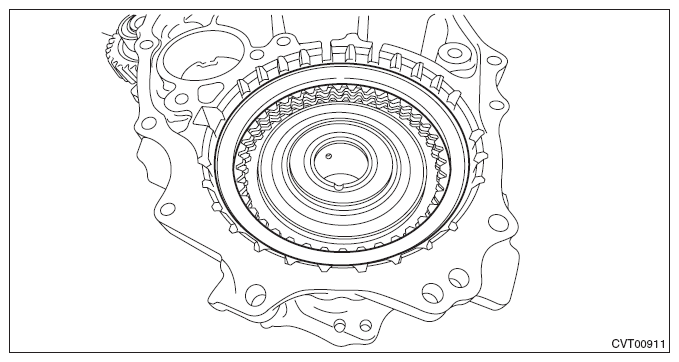

Remove the snap ring.
Remove the retaining plate, drive plate, driven plate and dish plate.

Courtesy of SUBARU OF AMERICA, INC.
Set the ST1, ST2 and ST3 to intermediate case.
Preparation tool:

ST1: COMPRESSOR SPECIAL TOOL (18762AA001)

ST2: COMPRESSOR SHAFT (18763AA000)

ST3: COMPRESSOR SUPPORT (18765AA000)

Courtesy of SUBARU OF AMERICA, INC.

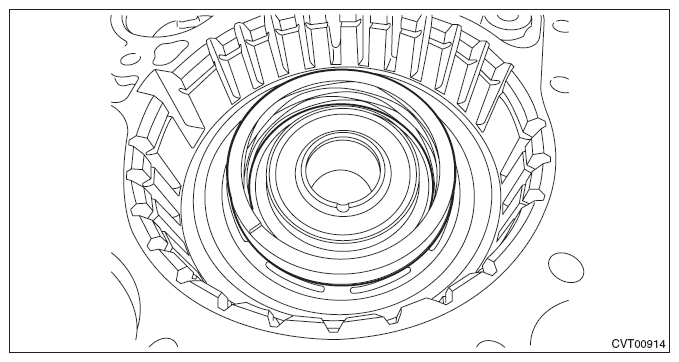

Compress the return spring to remove the snap ring.

Courtesy of SUBARU OF AMERICA, INC.

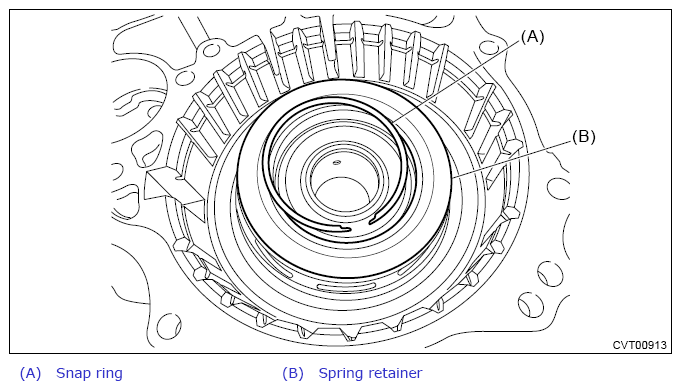

Remove the snap ring and spring retainer.

Courtesy of SUBARU OF AMERICA, INC.
Remove the return spring.

Courtesy of SUBARU OF AMERICA, INC.
Remove the reverse brake piston by blowing compressed air from intermediate case hole.

Courtesy of SUBARU OF AMERICA, INC.
