Secondary Pressure Sensor: Removal
CAUTION:
If water or oil contacts the connector terminal of secondary pressure sensor, replace it with a new part.
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

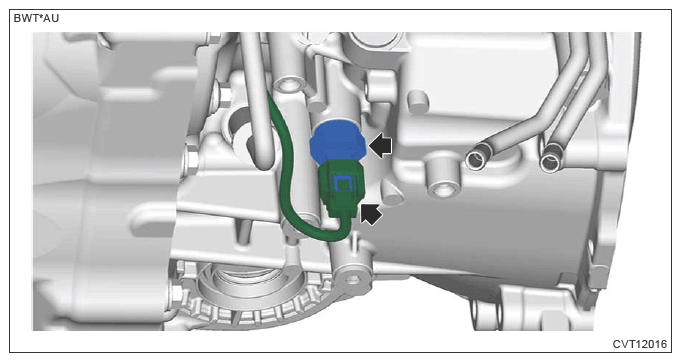

- Disconnect the connector, and using Ko-ken 3/8 12-point 27-mm deep socket (part No. 3305M-27), remove the secondary pressure sensor.NOTE: Prepare the container for draining of engine oil.
