Torque Converter: Installation

Install a new O-ring.
NOTE: Apply CVTF to the O-rings.
Install the torque converter.
CAUTION:
- Do not damage the oil seal and O-ring.
- Be careful not to scratch the inside of engaging parts.
NOTE:
- Apply CVTF to the oil seal lip.
- Engage the splines while gently rotating the torque converter by hand.

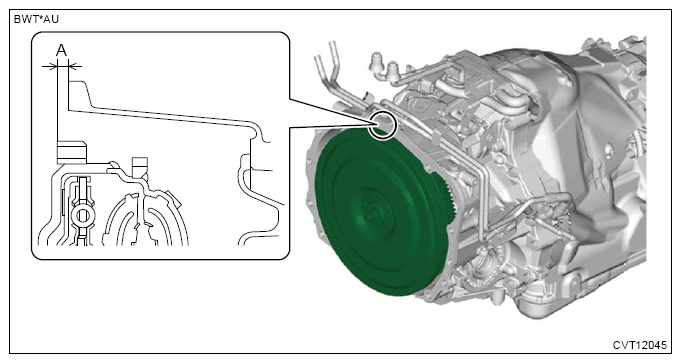

Measure the dimension "A" from converter case end surface to drive plate mounting surface.
Specification:

6.8 mm (0.27 in) or less

Courtesy of SUBARU OF AMERICA, INC.

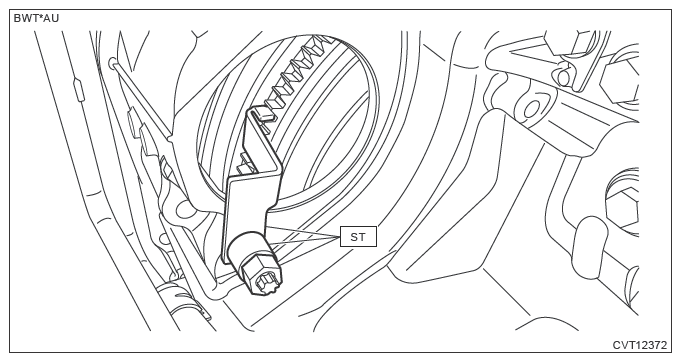

Attach the ST to converter case.
Preparation tool:

ST: STOPPER SET (498277200)

Courtesy of SUBARU OF AMERICA, INC.
Install the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Transmission Assembly>INSTALLATION .
