Torque Converter: Removal

  1. Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Transmission Assembly>REMOVAL .
  2. Remove the ST from converter case.

    Preparation tool:

    ST: STOPPER SET (498277200)

    G13622049Courtesy of SUBARU OF AMERICA, INC.

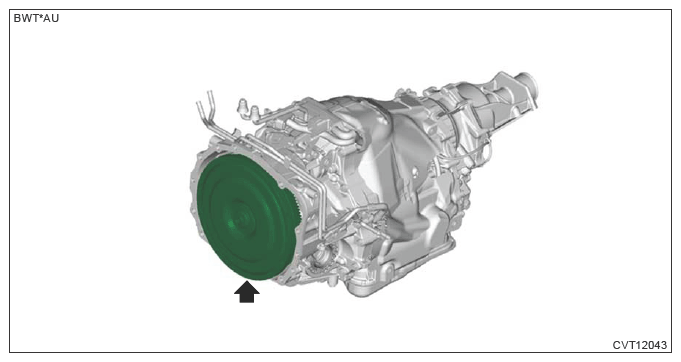

  3. Pull out the torque converter horizontally.
    CAUTION: Be careful not to scratch the inside of engaging parts.
    G13622050Courtesy of SUBARU OF AMERICA, INC.

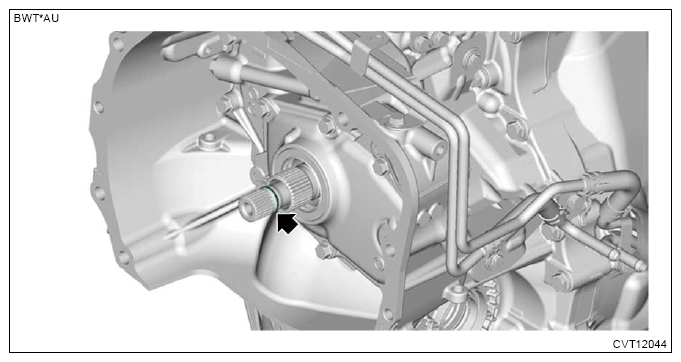

  4. Remove the O-rings.
    G13622051Courtesy of SUBARU OF AMERICA, INC.
