Transfer Clutch: Disassembly

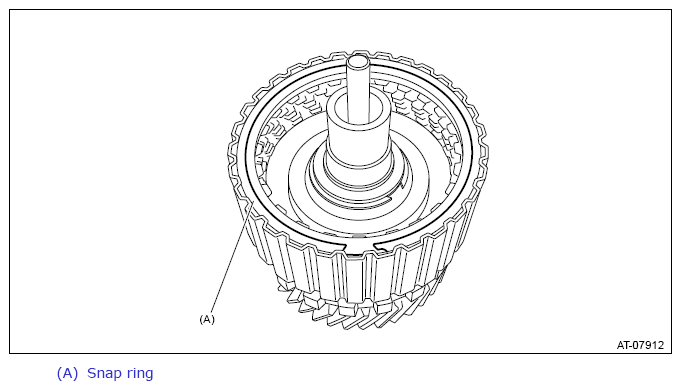

Remove the snap ring, and then remove the pressure plate, drive plate and driven plate.

Courtesy of SUBARU OF AMERICA, INC.

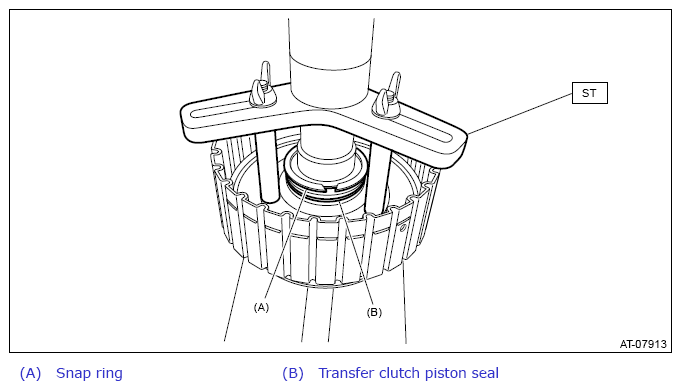

Remove the snap ring using the ST and a press.
Preparation tool:

ST: COMPRESSOR SPECIAL TOOL (18762AA001)

Courtesy of SUBARU OF AMERICA, INC.
Remove the transfer clutch piston seal.

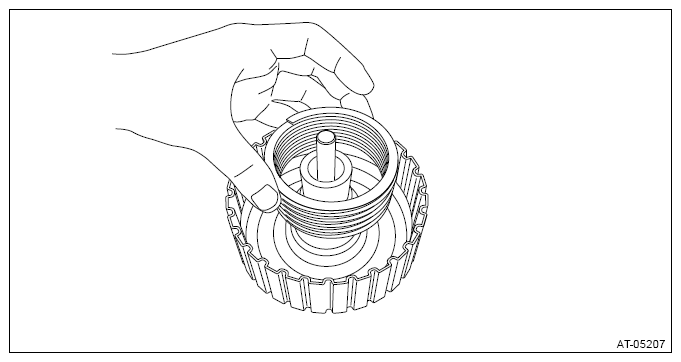

Remove the return spring.

Courtesy of SUBARU OF AMERICA, INC.

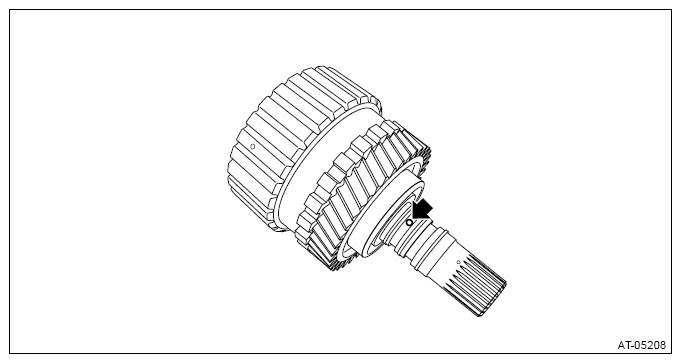

Remove the transfer clutch piston by blowing compressed air through transfer clutch hole.
NOTE: Block the hole opposite to the one to be blown with compressed air.

Courtesy of SUBARU OF AMERICA, INC.

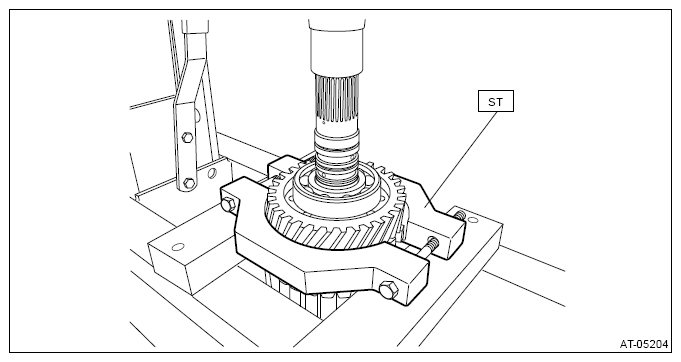

Using the ST and a press, remove transfer drive gear, parking gear and ball bearing.
Preparation tool:

ST: BEARING REMOVER (18767AA000)

NOTE: Let the ST sit on the parking gear.

Courtesy of SUBARU OF AMERICA, INC.

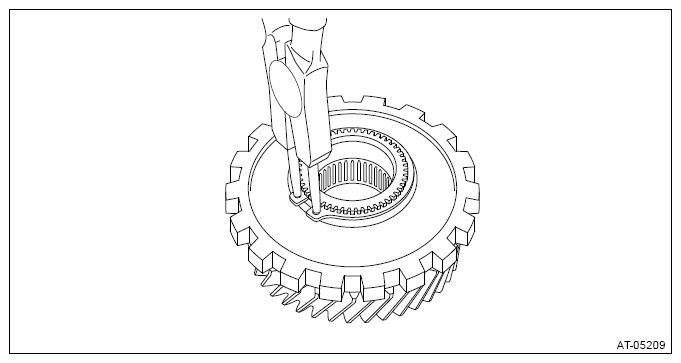

Remove the snap ring from transfer drive gear.

Courtesy of SUBARU OF AMERICA, INC.

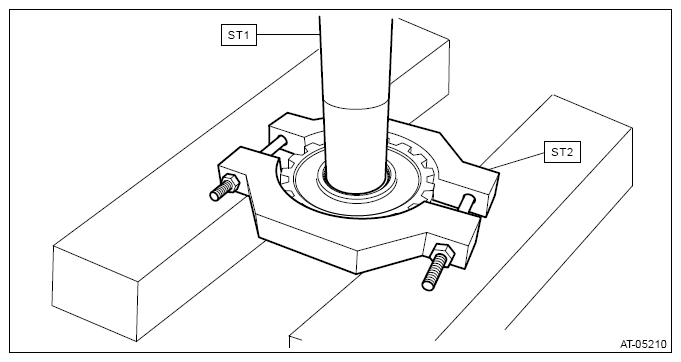

Using the ST1, ST2 and a press, remove the parking gear from the transfer drive gear.
Preparation tool:

ST1: BUSHING 1-2 INSTALLER (499277100)

ST2: BEARING REMOVER (18767AA000)

Courtesy of SUBARU OF AMERICA, INC.
