Transfer Reduction Driven Gear: Disassembly

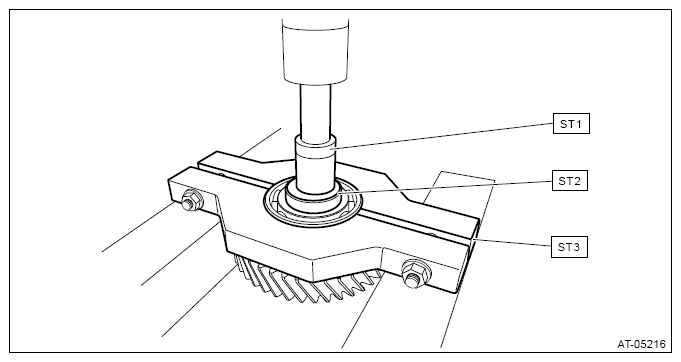

  1. Using the ST1, ST2, ST3 and a press, remove the ball bearing (large) from the transfer reduction driven gear.

    Preparation tool:

    ST1: REMOVER (899864100)

    ST2: SEAT (398497701)

    ST3: REMOVER (498077600)

    G13200149Courtesy of SUBARU OF AMERICA, INC.
  2. Using the ST1, ST2, ST3 and a press, remove the ball bearing (small) from the transfer reduction driven gear.

    Preparation tool:

    ST1: REMOVER (899864100)

    ST2: SEAT (398497701)

    ST3: REMOVER (18720AA000)

    G13200149Courtesy of SUBARU OF AMERICA, INC.
