Transmission Case: Disassembly

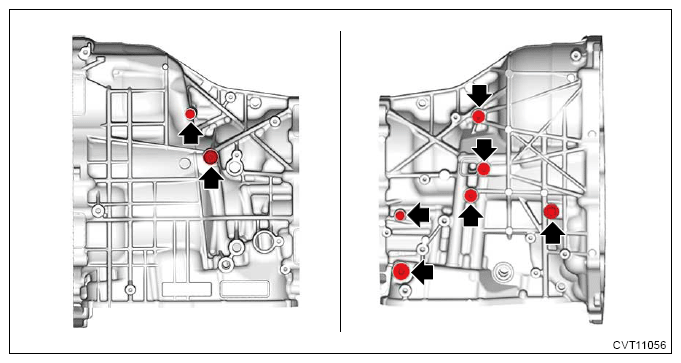

Remove all plugs from the transmission case.

Courtesy of SUBARU OF AMERICA, INC.
Remove the lubrication pipe.

Courtesy of SUBARU OF AMERICA, INC.
Remove the oil seal using a flat tip screwdriver wrapped with cloth, etc.

Courtesy of SUBARU OF AMERICA, INC.

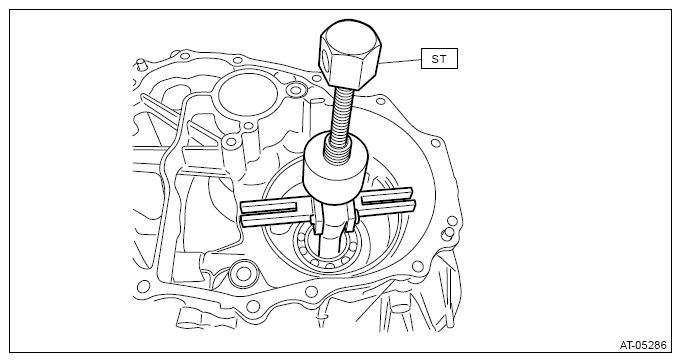

Remove the ball bearing on the reduction driven gear side using ST.
Preparation tool:

ST: PULLER ASSY (398527700)

Courtesy of SUBARU OF AMERICA, INC.

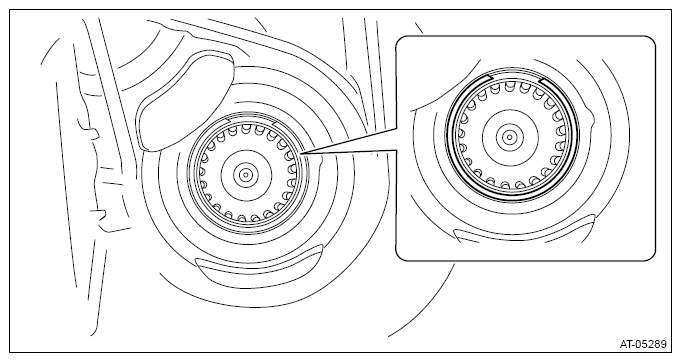

Remove the snap ring on the primary pulley side.

Courtesy of SUBARU OF AMERICA, INC.

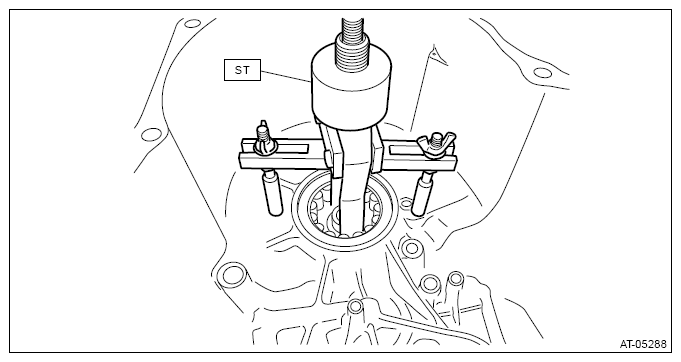

Using the ST, remove the roller bearing on the primary pulley side.
NOTE: Warm up the bearing area of transmission case using a drier or heat gun.

Preparation tool:

ST: PULLER ASSY (398527700)

Courtesy of SUBARU OF AMERICA, INC.
Remove the snap ring on the secondary pulley side.

Courtesy of SUBARU OF AMERICA, INC.

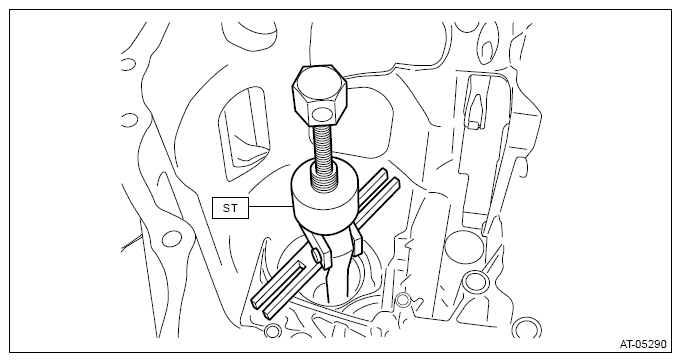

Using the ST, remove the roller bearing on the secondary pulley side.
NOTE: Warm up the bearing area of transmission case using a drier or heat gun.

Preparation tool:

ST: PULLER ASSY (398527700)

Courtesy of SUBARU OF AMERICA, INC.
