Transmission Control Device: Removal

  1. Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Transmission Assembly>REMOVAL .
  2. Remove the oil pan and control valve body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Control Valve Body>REMOVAL .
  3. Remove the inhibitor switch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Inhibitor Switch>REMOVAL .

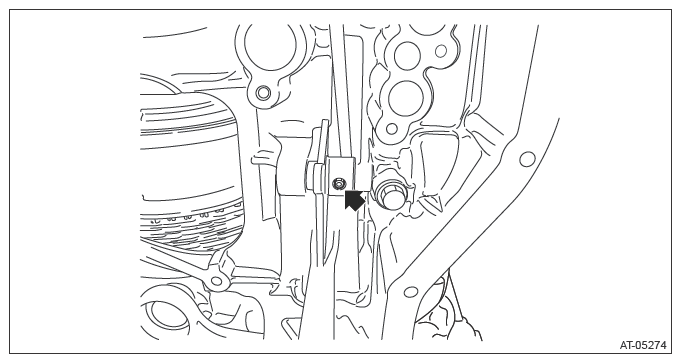

  4. Remove the straight pin.
    NOTE: Prevent the straight pin from dropping in the transmission using paper towel, etc.
    G13200225Courtesy of SUBARU OF AMERICA, INC.

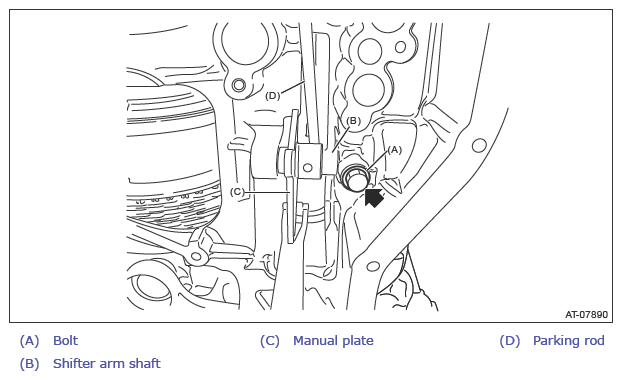

  5. Remove the bolts and remove the shifter arm shaft, manual plate and parking rod.
    NOTE: Do not damage the lip portion of oil seal press-fitted in the transmission case.
    G13864042Courtesy of SUBARU OF AMERICA, INC.

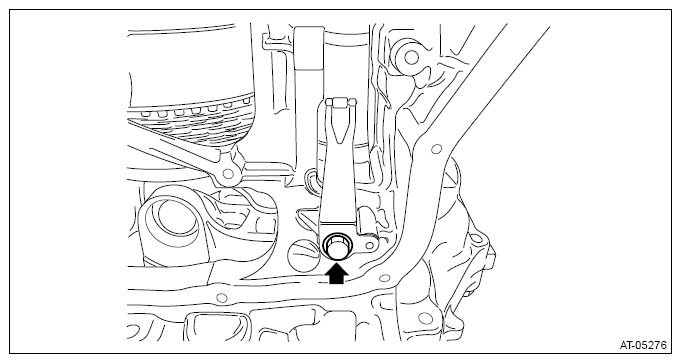

  6. Remove the detent spring.
    G13200227Courtesy of SUBARU OF AMERICA, INC.
