Transmission Control Module (TCM): Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

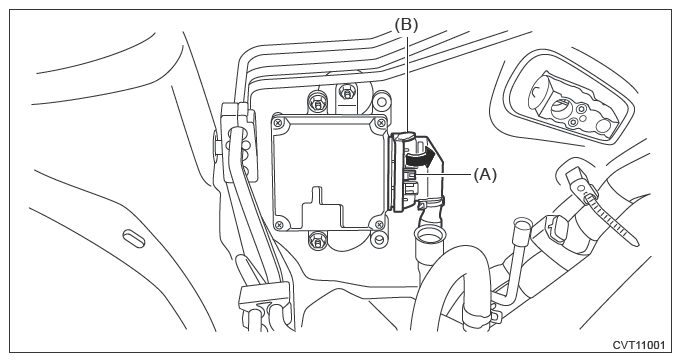

  2. Move the lock lever (B) in the arrow direction while pressing the lock button (A), and disconnect the connector.
    G13863874Courtesy of SUBARU OF AMERICA, INC.

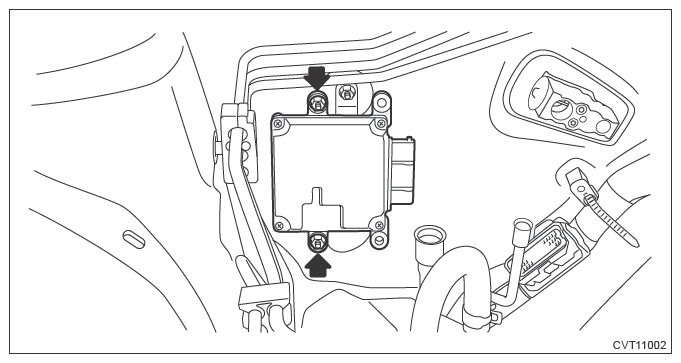

  3. Remove the TCM.
    G13200069Courtesy of SUBARU OF AMERICA, INC.
