Transmission Harness: Removal

  1. Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Transmission Assembly>REMOVAL .

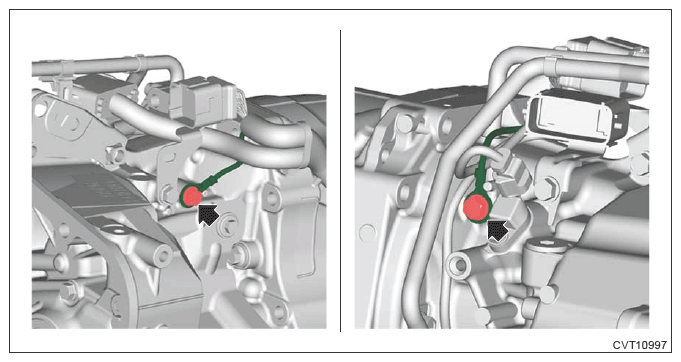

  2. Disconnect the transmission ground.
    G13200061Courtesy of SUBARU OF AMERICA, INC.

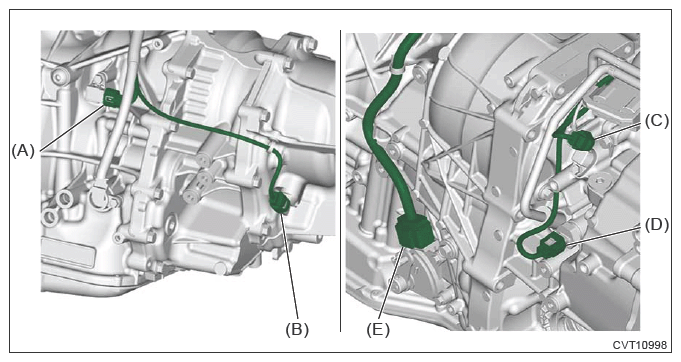

  3. Disconnect the harness connector from the secondary speed sensor (A), front wheel speed sensor (B), primary speed sensor (C), secondary pressure sensor (D), and inhibitor switch (E).
    G13200062Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the harness stay from the transmission harness connector and inhibitor harness connector.
  5. Remove the torque converter. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Torque Converter>REMOVAL .
  6. Install the ST and place the transmission body.
    NOTE:
    • When attaching the ST to the (a) positions, spacers or similar of 2.0 mm (0.08 in) or more in thickness are necessary.
    • Prepare a container for draining of oil, because CVTF remaining inside the transmission body may flow out from the input shaft portion.

    Preparation tool:

    ST: STAND ASSY (18632AA000)

    G13225799Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the control valve body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Control Valve Body>REMOVAL .

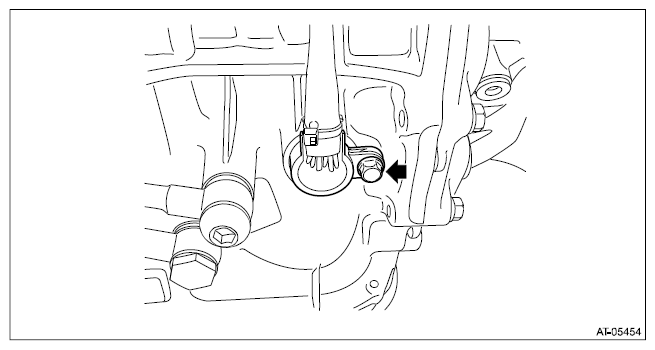

  8. Remove the bolt securing the transmission harness.
    G12452314Courtesy of SUBARU OF AMERICA, INC.
  9. Remove all clips and remove the transmission harness.

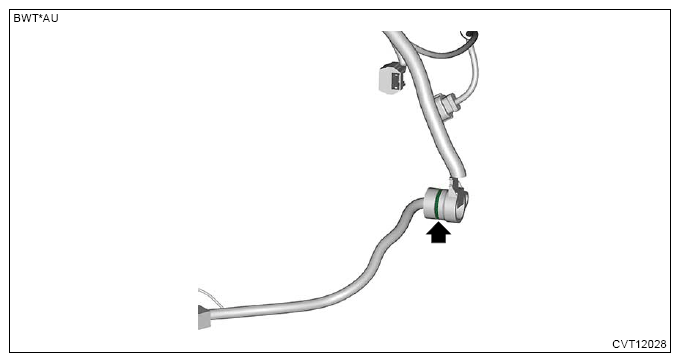

  10. Remove the O-rings.
    G13621987Courtesy of SUBARU OF AMERICA, INC.
