Pitching Stopper

  1. Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>Intercooler>REMOVAL .

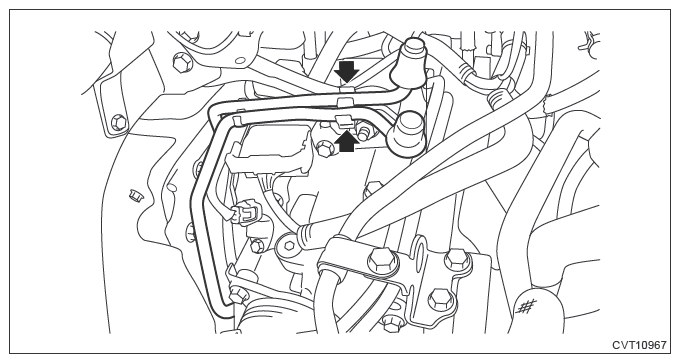

  2. Disconnect the air breather hose from the clip.
    G13200011Courtesy of SUBARU OF AMERICA, INC.

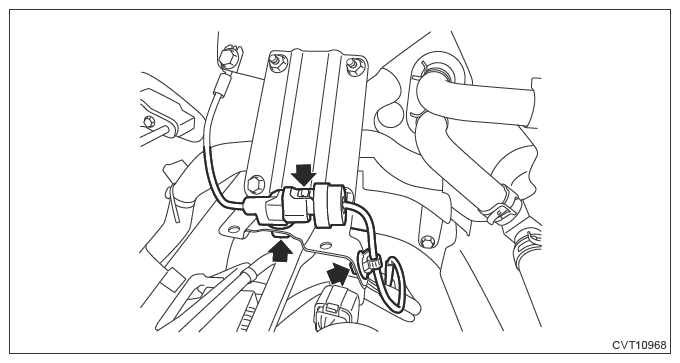

  3. Disconnect the ground cord.
    1. Remove the clip.
    2. Disconnect the coupling connector.
    G13200012Courtesy of SUBARU OF AMERICA, INC.

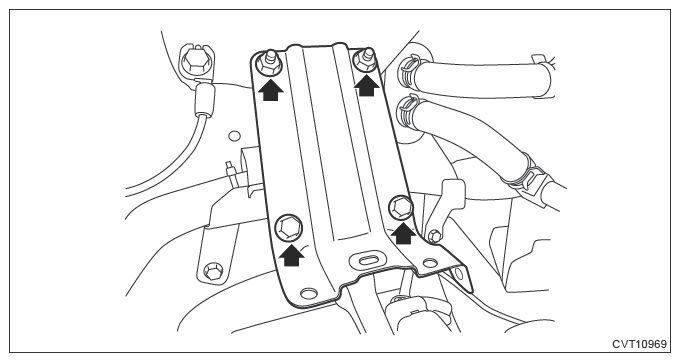

  4. Remove the pitching stopper plate.
    G13200013Courtesy of SUBARU OF AMERICA, INC.

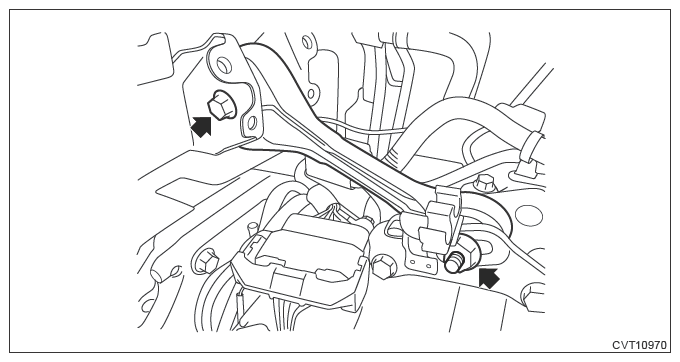

  5. Remove the pitching stopper.
    G13200014Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the pitching stopper bracket.
    NOTE: Perform this procedure only when required.
    G13621925Courtesy of SUBARU OF AMERICA, INC.
