X MODE Switch: Inspection

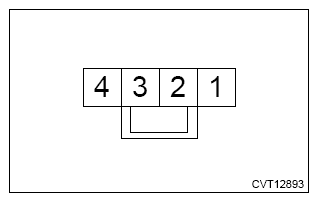

G13863873Courtesy of SUBARU OF AMERICA, INC.

Check the resistance between connector terminals.

Terminal No. Inspection conditions Standard
1 - 4 OFF 1 MΩ or more
ON (hold down the switch) Less than 1 Ω
