Camshaft Position Sensor
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Prepare an oscilloscope.
- Disconnect the connector from ECM in numerical order as shown in the figure.
- Attach the ST between the ECM, engine harness and the bulkhead wiring harness. Ref. to ENGINE (DIAGNOSTICS) (H4DOTC)>General Description>PREPARATION TOOL>HOW TO USE CHECK BOARD
.
Special tool:
CHECK BOARD (18460AA150)
- Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Connect the probe to ST.

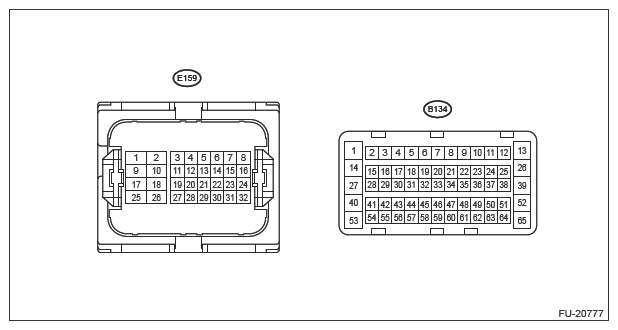

Camshaft position sensor Terminal No. Probe Intake RH (E159) No. 20 + LH (E159) No. 29 + Exhaust RH (E159) No. 21 + LH (E159) No. 13 + RH and LH (B134) No. 40 - - Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Start the engine and let it idle.
- Check the waveforms and voltage.NOTE: For waveform and voltage, refer to "Control Module (ECM) I/O Signal". Ref. to ENGINE (DIAGNOSTICS) (H4DOTC)>Control Module I/O Signal>ELECTRICAL SPECIFICATION .
- After inspection, install the related parts in the reverse order of removal.NOTE: For installation procedures of ECM connectors, refer to Engine Control Module (ECM). Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Engine Control Module (ECM)>INSTALLATION .
