IMPREZA Model

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .

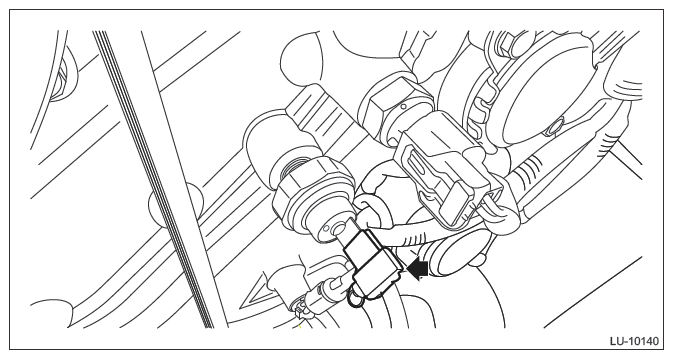

  2. Disconnect the connector from oil pressure switch.
    G11253655Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the oil pressure switch.
    CAUTION: Use cloth to catch the engine oil in order to prevent it from splashing.
    G11253656Courtesy of SUBARU OF AMERICA, INC.
  4. Remove seal material from the oil pressure switch and the thread portions of the chain cover.
