Fuel Tank Protector: Removal
NOTE:
The fuel tank protector LH is not installed on some models.
- Lift up the vehicle.
- Remove the bolt and clip (A) and remove the fuel tank protector.

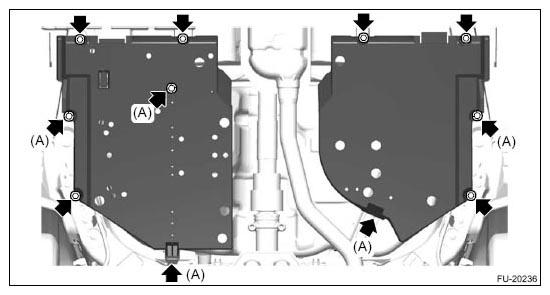

- Impreza model
 Courtesy of SUBARU OF AMERICA, INC.
|

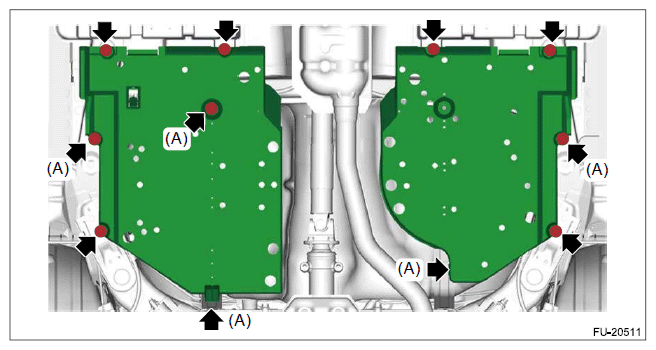

- Crosstrek model
 Courtesy of SUBARU OF AMERICA, INC.
|
