Engine Wiring Harness

2.0 L model (exploded view 1)

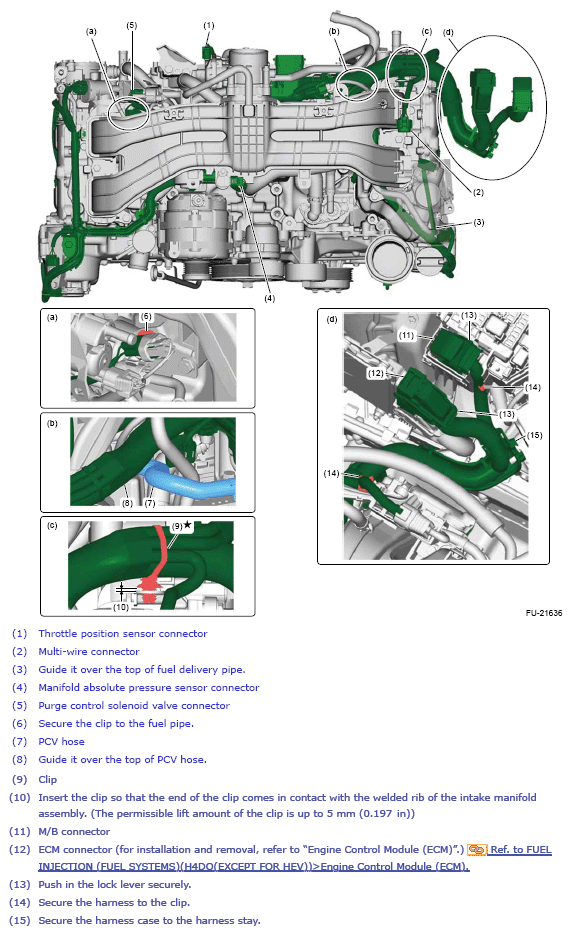

Fig 1: Exploded View 1 Of Engine Wiring Harness Components (2.0 L Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 19 (1.9, 14.0)
2.0 L model (exploded view 2)

Courtesy of SUBARU OF AMERICA, INC.

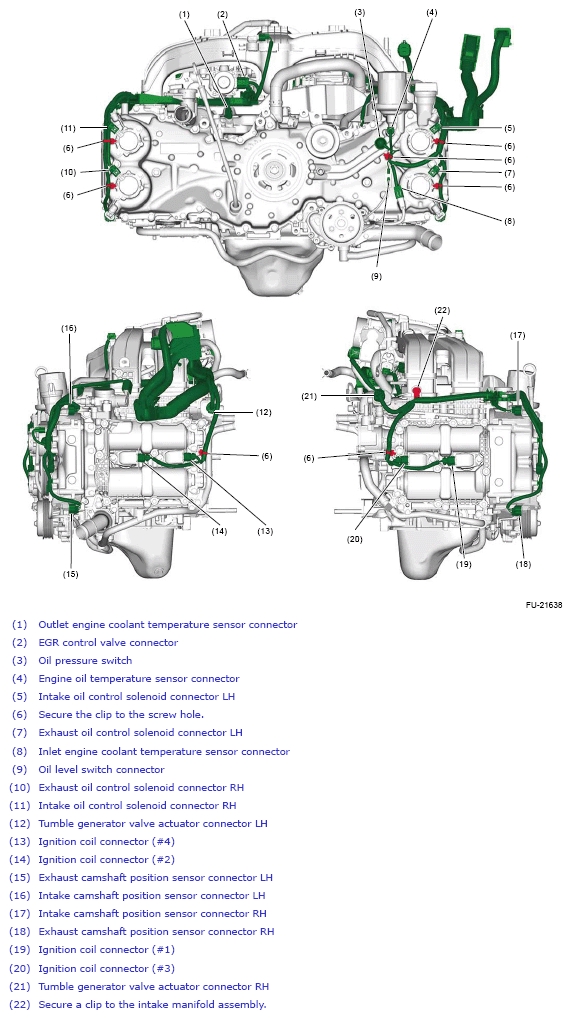

2.5 L model (exploded view 1)

Courtesy of SUBARU OF AMERICA, INC.

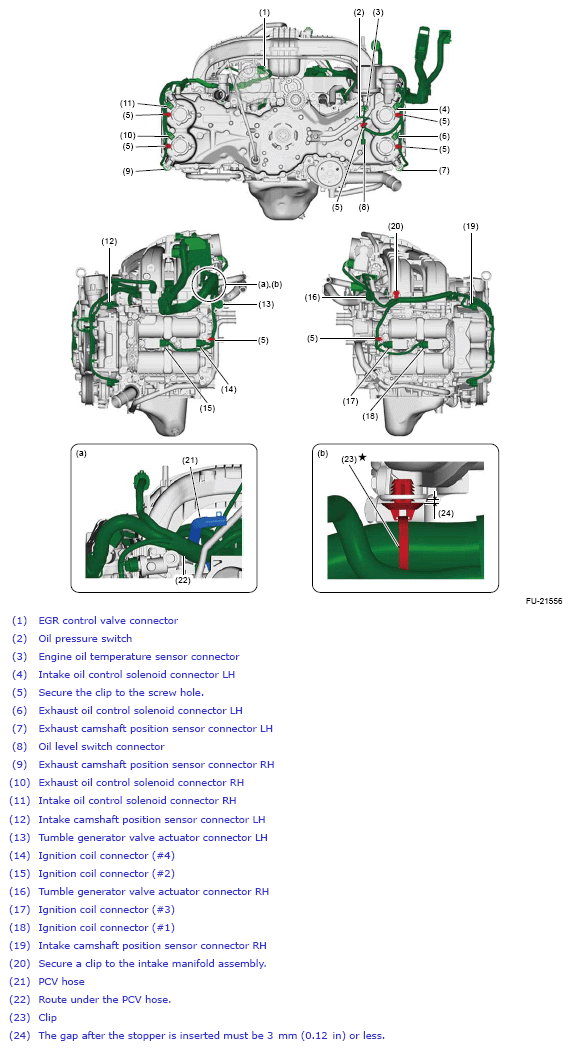

2.5 L model (exploded view 2)

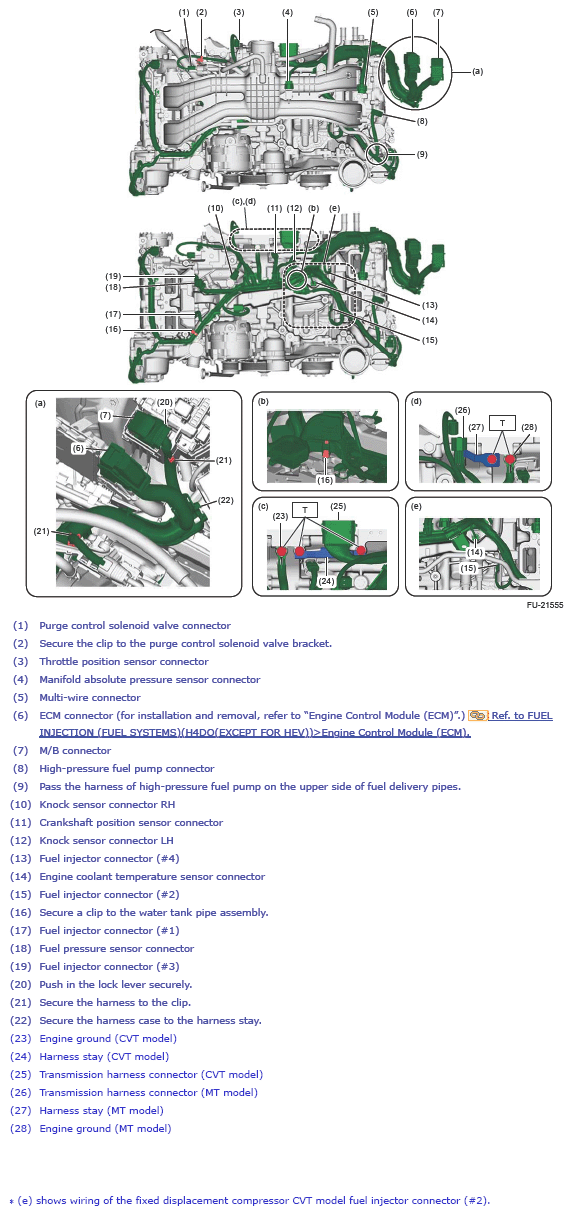

Fig 2: Exploded View 2 Of Engine Wiring Harness Components (2.5 L Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 19 (1.9, 14.0)

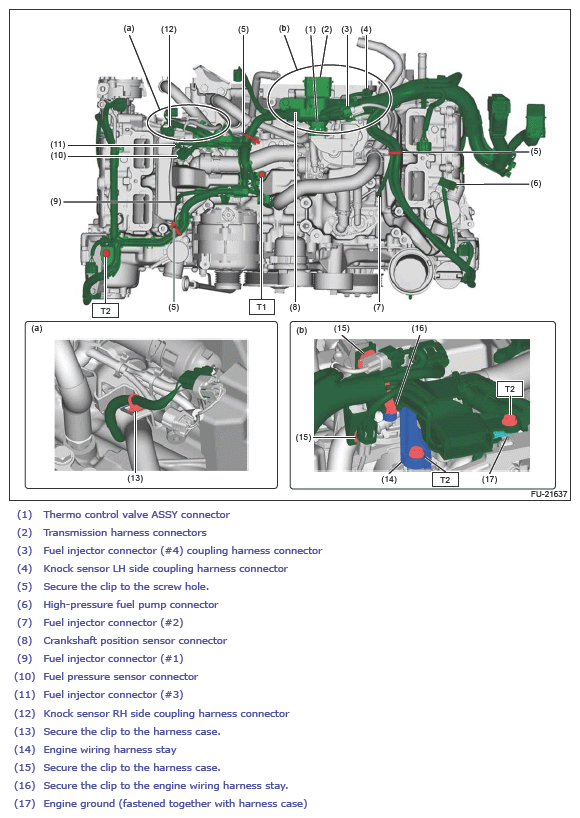

2.5 L model (exploded view 3)

Courtesy of SUBARU OF AMERICA, INC.
