LH Side

Install the ignition coil.
CAUTION: Degrease the mounting bolts, rocker cover installation portion and ignition coil installation hole.

Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)
Connect the connector to the ignition coil.
Attach the bracket.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

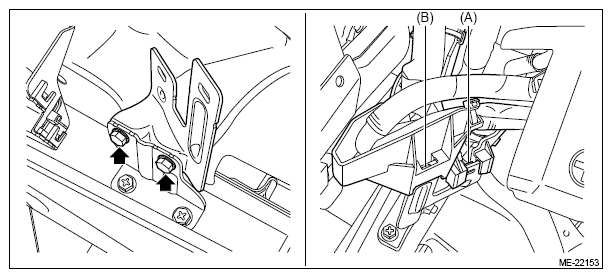

Place the engine wiring harness and secure the engine wiring harness to the bracket with the claw (A).
Secure the battery cable assembly to the bracket with the claw (B). (Except for hybrid model)

Courtesy of SUBARU OF AMERICA, INC.

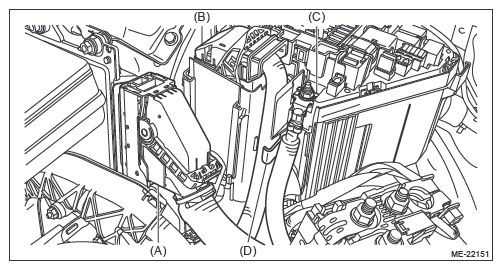

Install the engine wiring harness to the clip (D), and connect the terminal (C) and connector (B) to the main fuse box.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Connect connector (A) to ECM.

CAUTION: To prevent damage to the connector (A), when connecting the connector (A), insert the connector (A) straight in until it stops, and while maintaining the position, lock the lever.

NOTE: Check that the lever is located at the position shown in the figure (position beyond the lock portion (a)).

Courtesy of SUBARU OF AMERICA, INC.

Except for hybrid model

Courtesy of SUBARU OF AMERICA, INC.

Hybrid model

Courtesy of SUBARU OF AMERICA, INC.

Install the battery.
Except for hybrid model:

Ref. to STARTING/CHARGING SYSTEMS (H4DO (EXCEPT FOR HEV))>BATTERY>INSTALLATION .

Hybrid model:

Ref. to STARTING/CHARGING SYSTEMS (H4DO(HEV))>BATTERY>INSTALLATION .
