Condition Check
The illumination status of the Auto Start Stop indicator, Auto Start Stop OFF indicator and Auto Start Stop deactivation indicator is related to the vehicle status as follows.

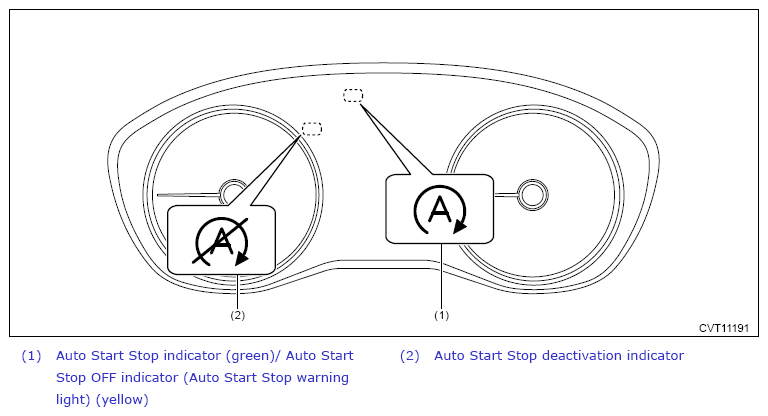

- NORMAL METER MODEL
 Courtesy of SUBARU OF AMERICA, INC.
|

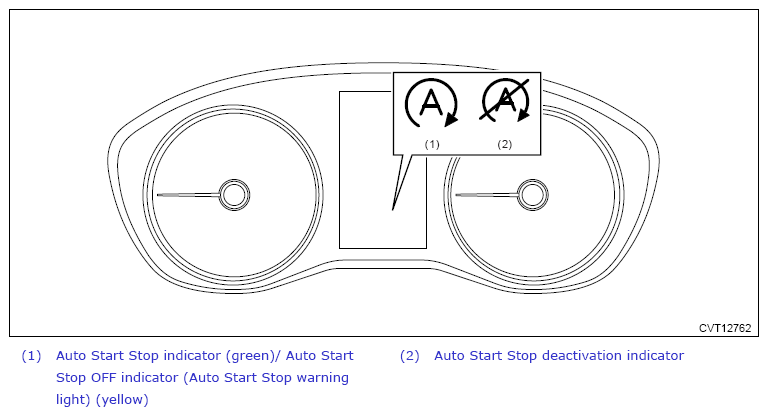

- COLOR TFT METER MODEL
 Courtesy of SUBARU OF AMERICA, INC.
|
| Vehicle condition |
Ignition switch ON |
When Auto Start Stop operation condition is not met |
During Auto Start Stop |
During Auto Start Stop cancellation |
Malfunction occurs during Auto Start Stop. |
| Auto Start Stop indicator status |
Light OFF |
Light OFF |
ON (green) |
Light OFF |
Light OFF |
| Auto Start Stop OFF indicator status |
ON (yellow) |
Light OFF |
Light OFF |
ON (yellow) |
Blink (yellow) |
| Auto Start Stop deactivation indicator status |
Light OFF |
Light ON |
Light OFF |
Light OFF |
Light OFF |
