Check Body Integrated Unit Power Supply And Ground Circuit

NOTE: For the DC power supply circuit, refer to "WIRING DIAGRAMS".

Impreza model: Ref. to WIRING SYSTEM (IMPREZA MODEL)>POWER SUPPLY CIRCUIT .
Except for Crosstrek hybrid model: Ref. to WIRING SYSTEM (CROSSTREK MODEL (EXCEPT FOR HEV))>POWER SUPPLY CIRCUIT .
Crosstrek hybrid model: Ref. to WIRING SYSTEM (CROSSTREK MODEL (HEV))>POWER SUPPLY CIRCUIT .

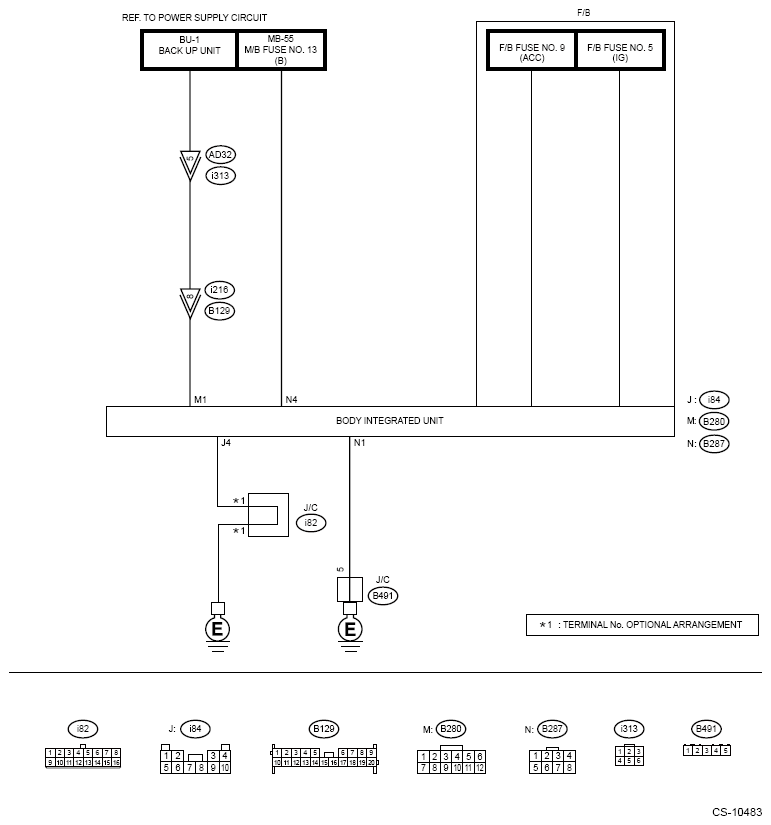

Except for Crosstrek hybrid model

Courtesy of SUBARU OF AMERICA, INC.

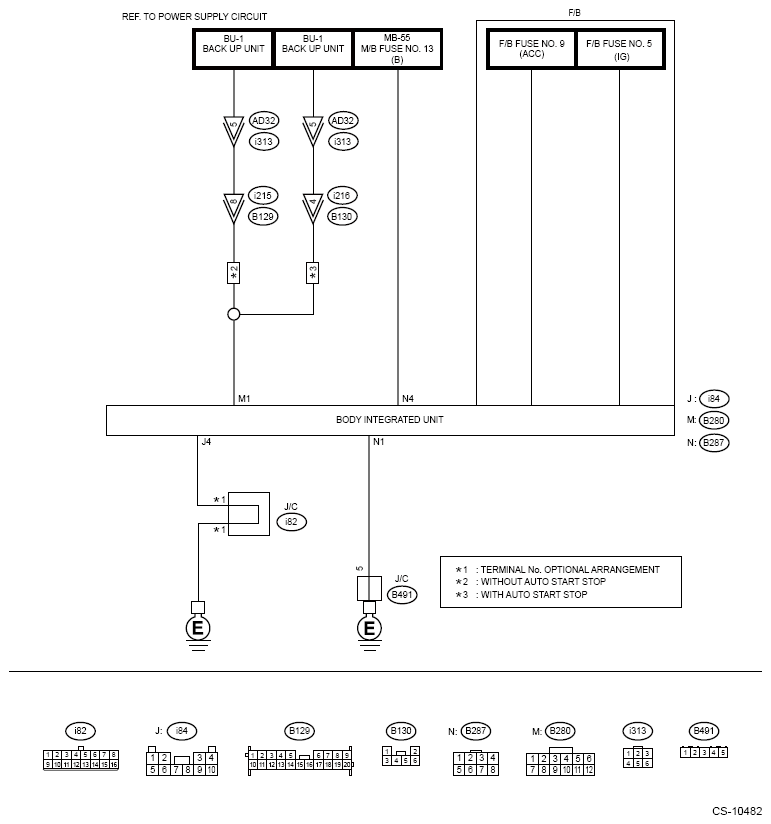

Crosstrek hybrid model

Courtesy of SUBARU OF AMERICA, INC.

CHECK DTC .
1. Turn the ignition switch to ON.
2. Read the DTC of [Body Control] using the Subaru Select Monitor. Ref. to COMMON (DIAG)>DIAGNOSTIC TROUBLE CODE (DTC) .
Is DTC of the power supply system displayed?

Yes: Perform the diagnosis according to the DTC.

No: Go to 2.
CHECK FUSE .
1. Turn the ignition switch to OFF.
2. Check the fuse.
Is the check result OK?

Yes: Go to 3.

No: Replace the defective fuse.
CHECK HARNESS BETWEEN BODY INTEGRATED UNIT AND BATTERY .
1. Disconnect the body integrated unit connector.
2. Turn the ignition switch to ON.
3. Measure the voltage between body integrated unit and chassis ground.
Connector & terminal

(B280) No. 1 (+) - Chassis ground (-):

(B287) No. 4 (+) - Chassis ground (-):

Is the voltage 9 - 16 V?

Yes: Go to 4.

No: Repair the open circuit of harness between body integrated unit and battery.
CHECK BODY INTEGRATED UNIT IGN POWER SUPPLY CIRCUIT .
1. Turn the ignition switch to ON.
2. Measure the voltage between F/B fuse No. 5 and chassis ground.
Connector & terminal

F/B fuse No. 5 (+) - Chassis ground (-):

Is the voltage 10 V or more?

Yes: Go to 5.

No: Repair the open circuit of the harness between body integrated unit and ignition switch.
CHECK BODY INTEGRATED UNIT AND ACC VOLTAGE SUPPLY CIRCUIT .
1. Turn the ignition switch to ACC.
2. Measure the voltage between F/B fuse No. 9 and chassis ground.
Connector & terminal

F/B fuse No. 9 (+) - Chassis ground (-):

Is the voltage 10 V or more?

Yes: Go to 6.

No: Repair the open circuit of the harness between body integrated unit and ignition switch.
CHECK HARNESS BETWEEN BODY INTEGRATED UNIT AND CHASSIS GROUND .
1. Turn the ignition switch to OFF.
2. Measure the harness resistance between the body integrated unit and chassis ground.
Connector & terminal

(i84) No. 4 - Chassis ground:

(B287) No. 1 - Chassis ground:

Is the resistance less than 1 Ω?

Yes: Go to 7.

No: Repair the open circuit of harness between the body integrated unit and chassis ground.
CHECK FOR POOR CONTACT .
Is there poor contact of connector?

Yes: Repair the poor contact.

No: End.
