6MT Gear Shift Lever

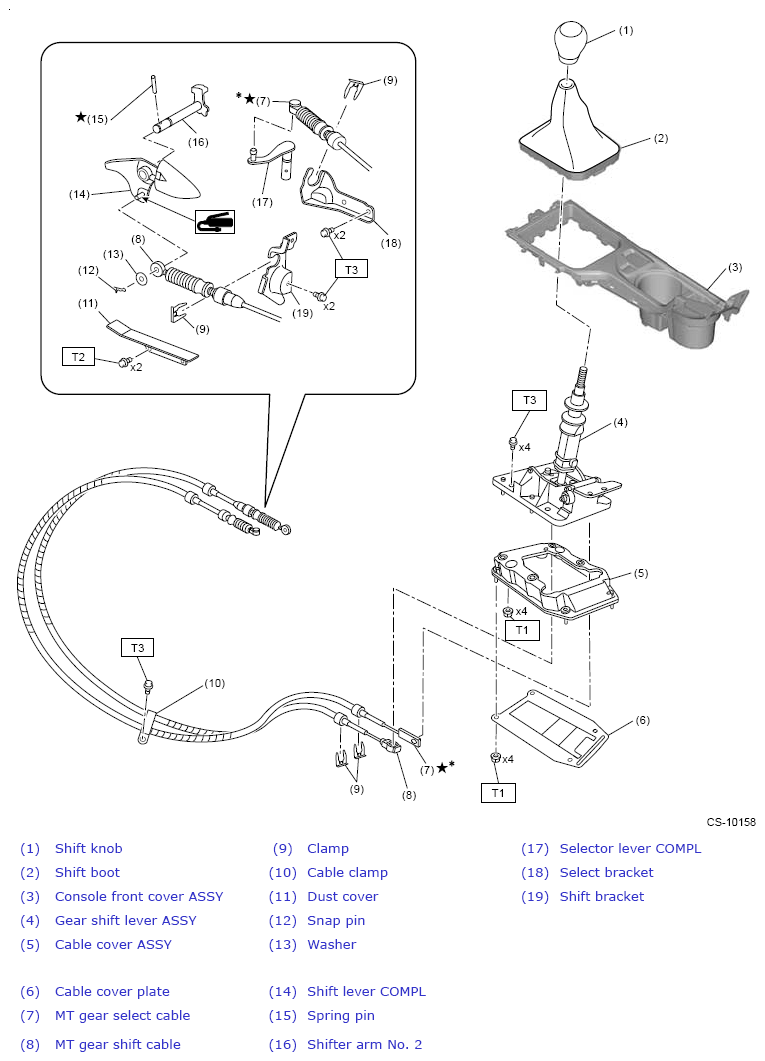

Fig 1: 6MT Gear Shift Lever Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 15 (1.5, 11.1)

*: Always use new MT gear select cable if the cable is removed from selector lever COMPL of transmission side.
