6MT Model

Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
Lift up the vehicle.
Remove the front exhaust pipe. Ref. to EXHAUST (H4DO (EXCEPT FOR HEV))>FRONT EXHAUST PIPE>REMOVAL .
Remove the center exhaust cover.

Courtesy of SUBARU OF AMERICA, INC.
Remove the cable cover plate.

Courtesy of SUBARU OF AMERICA, INC.
Disconnect the MT gear shift cable and MT gear select cable.
CAUTION:
- Be careful not to deform the cable inner.
- Do not twist the cable inner excessively.
- Do not apply excessive load while holding the part (a).
Courtesy of SUBARU OF AMERICA, INC.

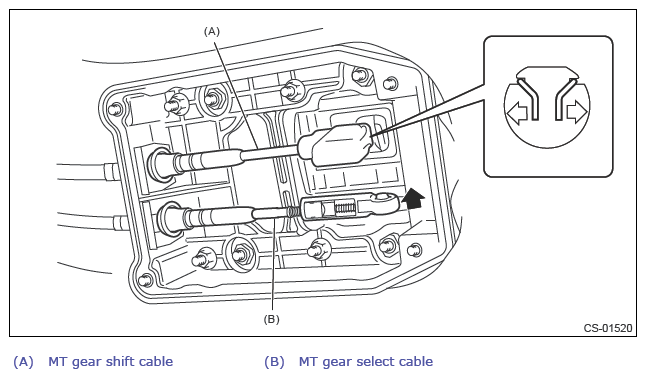

1. Pull out down the MT gear shift cable to spread the spring.
2. Push the MT gear select cable in the direction of arrow, and remove it.
Courtesy of SUBARU OF AMERICA, INC.

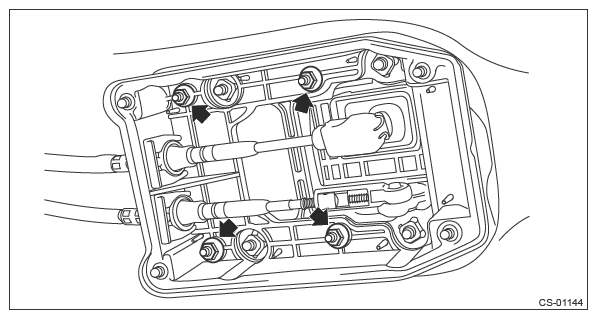

Remove the cable cover assembly.

Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Remove the gear shift knob and remove the front console panel. Ref. to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .
Remove the panel center LWR LH and RH. Ref. to EXTERIOR/INTERIOR TRIM>CENTER CONSOLE>REMOVAL .
Remove the harness clamp.
Remove the gear shift lever assembly.

NOTE: The MT gear shift lever cannot be disassembled.

Courtesy of SUBARU OF AMERICA, INC.
