Fuel Filler Pipe: Assembly

  1. Using a new neck holder, assemble the fuel filler pipe assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO(HEV))>GENERAL DESCRIPTION>COMPONENT>FUEL FILLER PIPE .

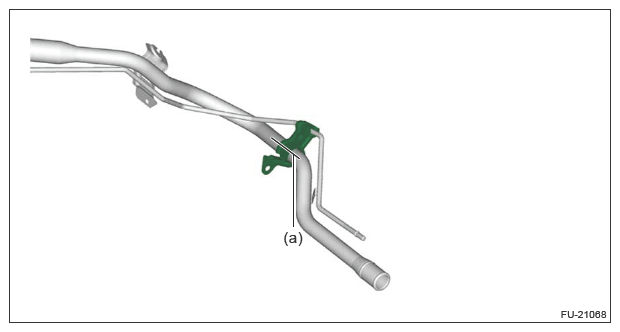

NOTE: Install the fuel filler pipe bracket to the fuel filler pipe by aligning the alignment marks (a).
G13231008Courtesy of SUBARU OF AMERICA, INC.
