Fuel Filler Pipe: Installation

NOTE: For the installation procedure of fuel filler lid, refer to "Fuel filler lid". Ref. to SECURITY AND LOCKS>REMOTE OPENERS>INSTALLATION>FUEL LID OPENER (HYBRID MODEL) .

Open the fuel filler lid.
Insert the fuel filler pipe assembly into the ring clip from inside of the rear fender.
Install the nuts securing the fuel filler pipe assembly.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

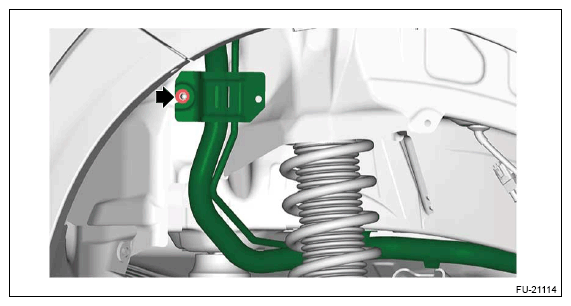

Install the bolts securing the fuel filler pipe assembly.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

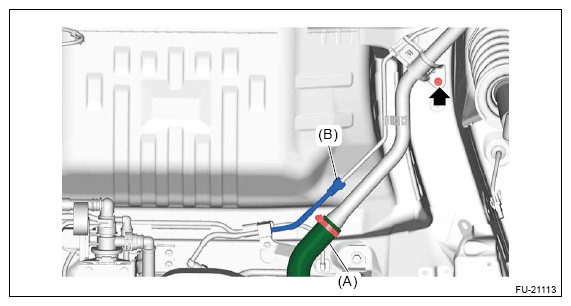

Connect the fuel filler hose (A) to the fuel filler pipe assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO(HEV))>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>FUEL FILLER HOSE CONNECTION>FILLER PIPE SIDE .
Connect the circulate tube assembly (B) to the fuel filler pipe assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO(HEV))>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE F) .

Courtesy of SUBARU OF AMERICA, INC.
Install the mud guard - rear RH. Ref. to EXTERIOR/INTERIOR TRIM>MUD GUARD>INSTALLATION .
Install the rear sub frame assembly. Ref. to REAR SUSPENSION>SUB FRAME>INSTALLATION .
Install the fuel filler pipe protector.
