Fuel Level Sensor: Installation

  1. Install the stay to the fuel pump assembly.
  2. Install the fuel level sensor to the stay.

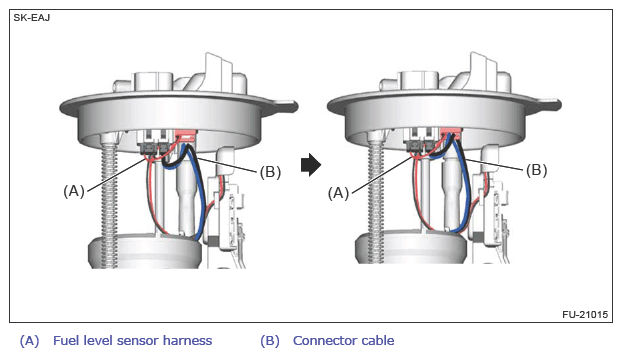

    CAUTION: Be sure to install the fuel level sensor harness to the clip first, then install the connector cable. Otherwise, malfunction may occur.
    G13934328Courtesy of SUBARU OF AMERICA, INC.
  3. Install the fuel pump assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO(HEV))>FUEL PUMP>INSTALLATION .
