Cover Of Inverter With Converter Assembly

Install the cover No. 1 (C) of inverter with converter assembly.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

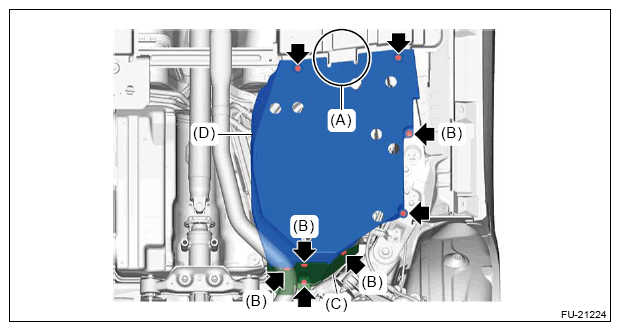

Insert the cover No. 2 (D) of inverter with converter assembly into the inlet port (A) of the floor under protector LH, and then install the bolt and clip (B).
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
