Main Relay: Removal

  1. Disconnect the ground terminal from battery. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .

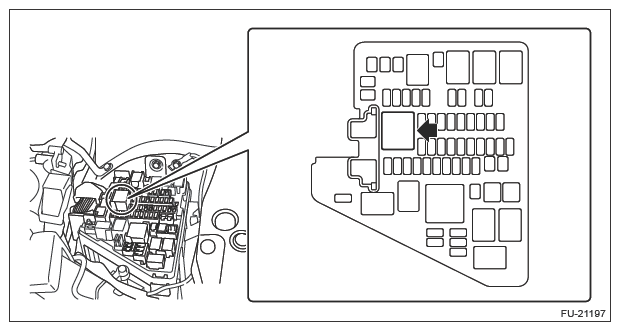

  2. Remove the main relay from main fuse box.
G13230957Courtesy of SUBARU OF AMERICA, INC.
