Mass Air Flow and Intake Air Temperature Sensor: Removal

  1. Disconnect the ground terminal from battery. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .

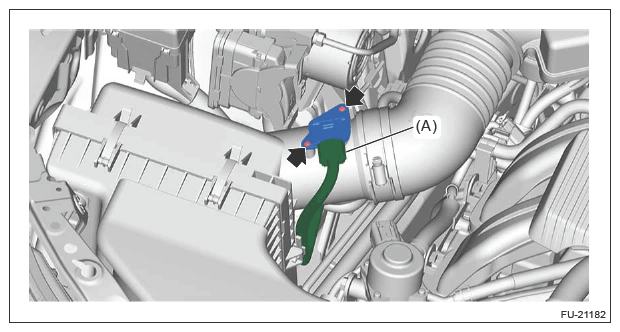

  2. Disconnect the connector (A) and remove the mass air flow and intake air temperature sensor.
G13230939Courtesy of SUBARU OF AMERICA, INC.
