Oil Control Solenoid: Removal: Intake

RH SIDE

Disconnect the ground terminal from battery. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DO (EXCEPT FOR HEV))>AIR INTAKE DUCT>REMOVAL .

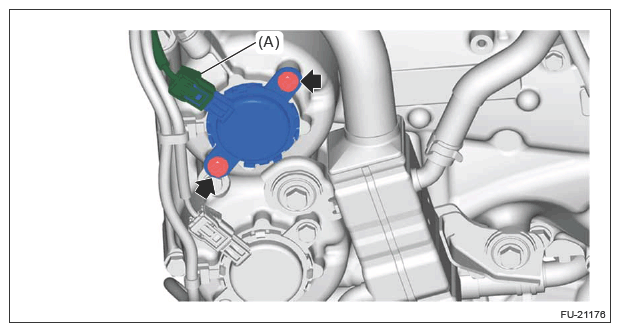

Disconnect the connector (A) and remove the oil control solenoid.

G13230925

Courtesy of SUBARU OF AMERICA, INC.

Remove the O-ring and back-up ring from the oil control solenoid.

LH SIDE

Disconnect the ground terminal from battery. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .

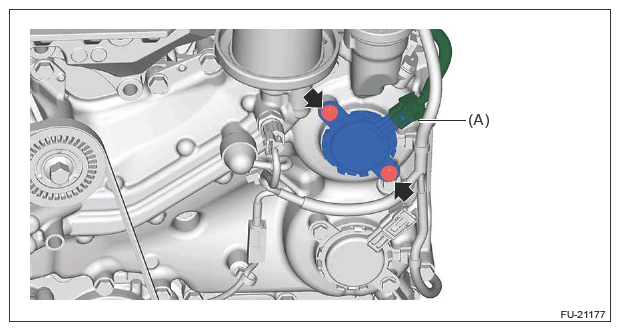

Disconnect the connector (A) and remove the oil control solenoid.

Courtesy of SUBARU OF AMERICA, INC.
Remove the O-ring and back-up ring from the oil control solenoid.
